Question: CME 2 0 5 Structural Analysis I Fall 2 0 2 1 Problem 4 Consider the truss in Figure 4 . Determine the horizontal deflection

CME 205
Structural Analysis I
Fall 2021
Problem 4

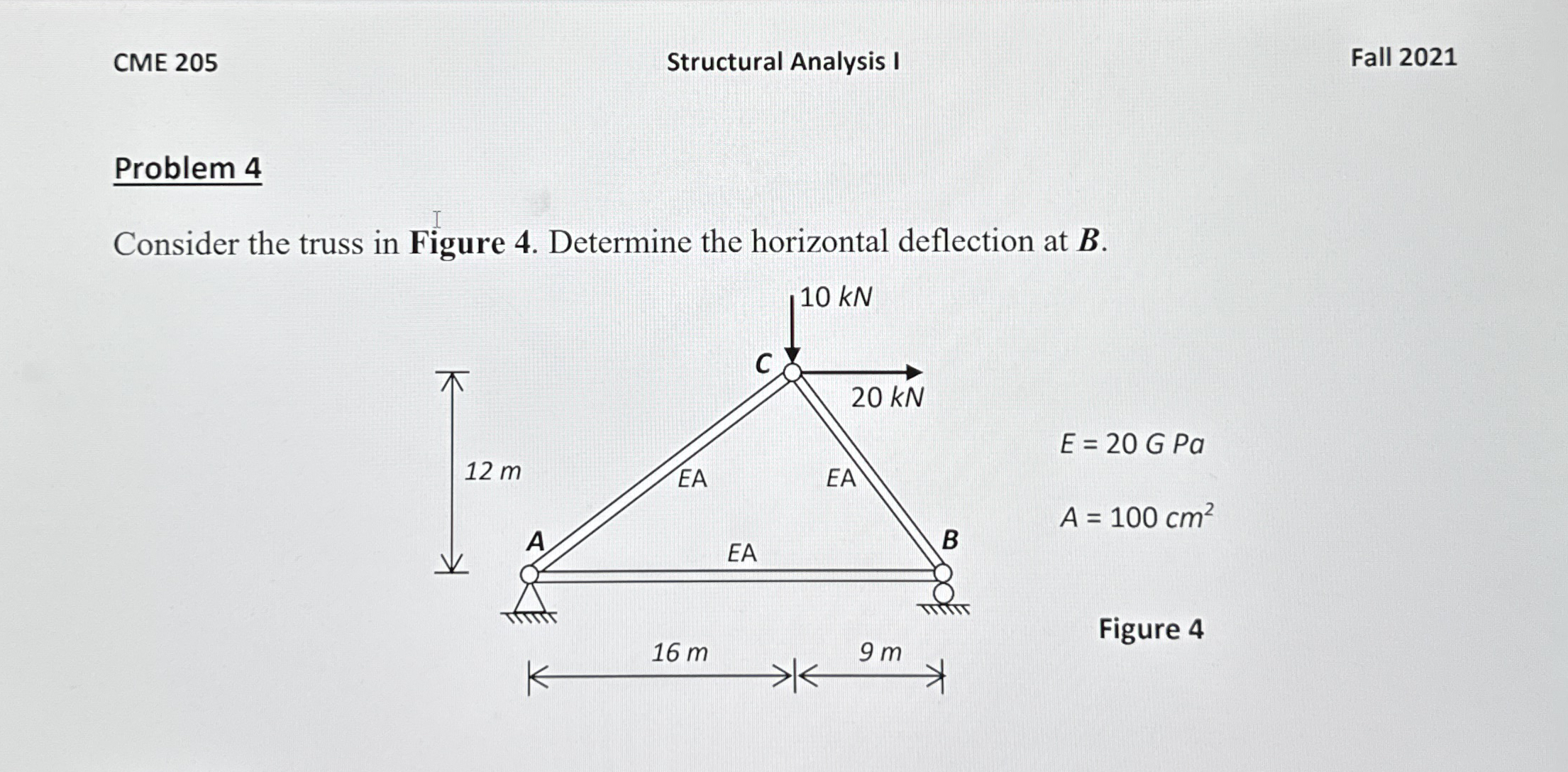

Consider the truss in Figure 4. Determine the horizontal deflection at B.
E=20GPa
A=100cm2
Figure 4
CME 2 0 5 Structural Analysis I Fall 2 0 2 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
