Code

Activity Name

$1.$

Site Preparation

$1\mathrm{.}1$

Establish site boundaries

$1\mathrm{.}2$

Complete dilapidation report

$1\mathrm{.}3$

Erect site temporary fencing

$1\mathrm{.}4$

Establish environmental protection

$1\mathrm{.}5$

Establish temporary site accommodation

$1\mathrm{.}6$

Markout $/$ cap existing services

$1\mathrm{.}7$

Bulk Excavation of top soil$/$unwanted soil

Detailed excavation

$1\mathrm{.}8$

Survey $/$ peg out new works

$1\mathrm{.}9$

Establish temporary services

$1\mathrm{.}10$

Erect scaffold stair tower

$1\mathrm{.}11$

Erect roof safety rail

$2.$

Foundation

$2\mathrm{.}1$

Form Footings

$2\mathrm{.}2$

Steel Reinforcement for footings

$2\mathrm{.}3$

Strip Footing Formwork

Pour Ground Slab Footings

Tie reo for footings and hardstands

$2\mathrm{.}4$

Concrete pour Slab footings

$2\mathrm{.}5$

Concrete curing

$2\mathrm{.}6$

Mark and excavate for drainage.

$2\mathrm{.}7$

Aggregate spreading and compacting

$2\mathrm{.}8$

Install electrical conduits

Form ground slab Unit $2$

$2\mathrm{.}9$

Mesh reinforcement in slab Unit $2$

$2\mathrm{.}10$

Pour concrete slab Unit $2$

$2\mathrm{.}11$

Allow adequate curing time

$2\mathrm{.}12$

Quality control and inspection

$3.$

Structure

$3\mathrm{.}1$

Erect structural steel

$3\mathrm{.}2$

Erect concrete wall panels INCL temporary propping

$3\mathrm{.}3$

FRP suspended concrete floors INCL concrete columns

$3\mathrm{.}4$

FRP off$-$form concrete columns

$3\mathrm{.}5$

Installation of fire rated intertenancy wall INCL set & sand

$3\mathrm{.}6$

FRP suspended concrete stairs

$4.$

Services

$4\mathrm{.}1$

Install in$-$ground services

$4\mathrm{.}2$

Hydraulic rough$-$in

$4\mathrm{.}3$

Electrical rough$-$in

$4\mathrm{.}4$

Mechanical rough$-$in

$4\mathrm{.}5$

Hydraulic fit$-$off

$4\mathrm{.}6$

Electrical fit$-$off

$4\mathrm{.}7$

Mechanical fit$-$off

$4\mathrm{.}8$

Drainage

$4\mathrm{.}9$

Testing and commissioning

$4\mathrm{.}10$

Certification

$5.$

Internal Finishes

$5\mathrm{.}1$

Internal wall and ceiling framing

$5\mathrm{.}2$

Install internal wall linings INCL set & sand

$5\mathrm{.}3$

Install internal ceiling grids

$5\mathrm{.}4$

Initial paint & seal amenities

$5\mathrm{.}5$

Apply screeds INCL setting angles amenities

Lay & cure floor membranes amenities

$5\mathrm{.}6$

Install floor tiles amenities

$5\mathrm{.}7$

Install wall tiles amenities

$5\mathrm{.}8$

Install WC partitions

$5\mathrm{.}9$

Installation of lunchroom joinery units INCL stone benchtops

Supply and installation of fire rated intertenancy wall

$6.$

External Finishes

$6\mathrm{.}1$

Upper metal roof sheeting INCL safety wire, insulation, roof lights, flashings, cappings

$6\mathrm{.}2$

Installation of gutters

$6\mathrm{.}3$

External fibre cement and aluminium wall framing $/$ cladding subframing

$6\mathrm{.}4$

Install external aluminium windows and glazing units

$6\mathrm{.}5$

External fibre cement and aluminium cladding INCL spandrel panels

$6\mathrm{.}6$

Installation of aluminium extruded sun blades

$6\mathrm{.}7$

Installation of gutters PVC downpipes

$6\mathrm{.}8$

Hang external egress doors & fit hardware

$6\mathrm{.}9$

Install metal roller shutters INCL commissioning

$6\mathrm{.}10$

Installation of external customer signage

$7.$

External Works

$7\mathrm{.}1$

Install palisade fencing

$7\mathrm{.}2$

Soft landscaping $($mulching$,$ grass, planting$)$

$7\mathrm{.}3$

Construct new concrete kerbs

$7\mathrm{.}4$

Install external line marking INCL wheel stops

$7\mathrm{.}5$

Security System installation

$7\mathrm{.}6$

Fire Safety

$7\mathrm{.}7$

Outdoor lighting

$7\mathrm{.}8$

Outdoor Irrigation

$7\mathrm{.}9$

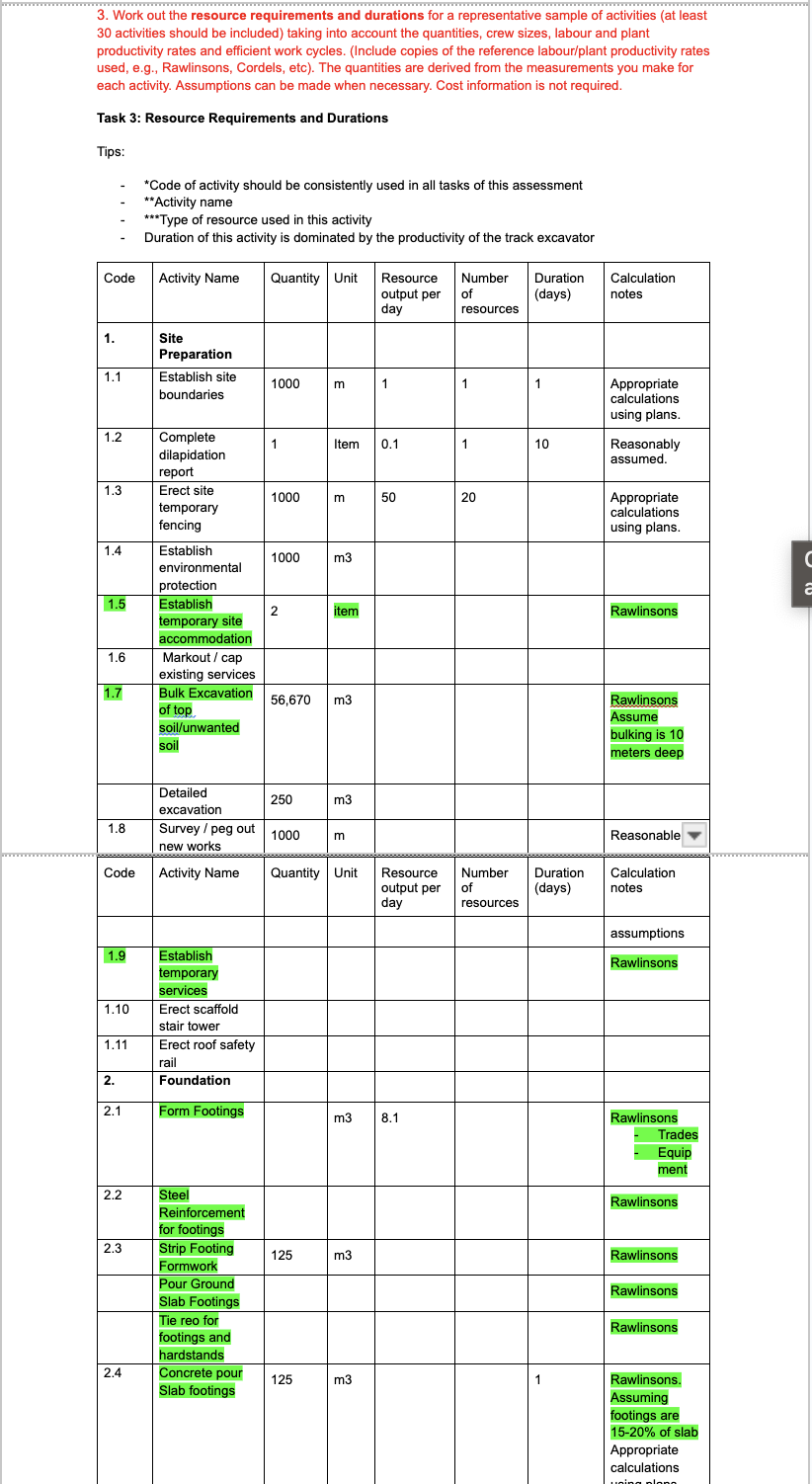

Paving worksWork out the resource requirements and durations for a representative sample of activities $($at least

$30$ activities should be included$)$ taking into account the quantities, crew sizes, labour and plant

productivity rates and efficient work cycles. $($Include copies of the reference labour$/$plant productivity rates

used, e$.$g$.,$ Rawlinsons, Cordels, etc$).$ The quantities are derived from the measurements you make for

each activity. Assumptions can be made when necessary. Cost information is not required.

Task $3$: Resource Requirements and Durations

Tips:

${?}^{**}$ Code of activity should be consistently used in all tasks of this assessment

$"*$Activity name

${?}^{******}$ Type of resource used in this activity

Duration of this activity is dominated by the productivity of the track excavator
