Code in C$.$ Design

Based on the requirements it looks like we can take a simple procedural approach and break

down the task into a sequence of subtasks or procedures, along with whatever data structures

are needed. To find the subtasks it can help to write down the steps in 'pseudocode' and repeat

this process, refining each step into greater detail. When working on the details of a subtask, it

helps to sketch diagrams of what your program will need to do so that you can get some insight

into how to solve the tricky parts.

Implementation

The program will be written in C $.$ Try to write your program incrementally by first creating the

overall structure with empty functions $($stubs$)$ and testing often to see that your program is

always working as expected. The entire program will be in a single file, called life.c$,$ and that is

what you will submit. Testing

When testing, you are checking to see that the program satisfies the requirements. Test to see

that each generation is properly displayed. Remember that when moving through the stages of

requirements, design, implementation and testing, it is often necessary to go back to a previous

stage and revisit decisions and make changes; software development is iterative.

Welcome! Press $\text{'}$q$\text{'}$ to quit or any other key to continue:

X

Enter the offsets for the live cells:

$6,11,12,16$

generation $=0$:

generation $=1$:generation $=2$:

$**$

$**$

generation $=3$:

generation $=4$:

$**$

$**$

$**$

generation $=5$:

$**$

$**$ generation $=4$:

$**$

$**$

generation $=5$:

$**$

generation $=6$:

$**$

Good life!

Press $\text{'}$q$\text{'}$ to quit or any other key to continue:

q

Bye Bye!

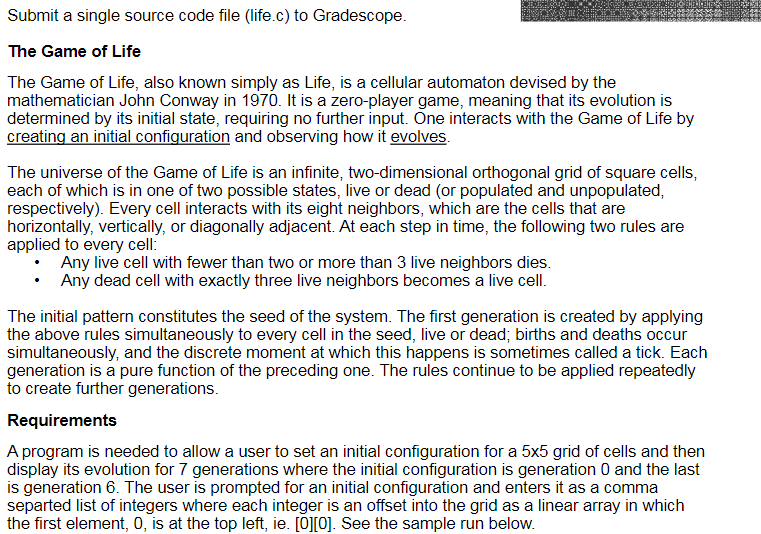

The Game of Life

The Game of Life, also known simply as Life, is a cellular automaton devised by the

mathematician John Conway in $1970.$ It is a zero$-$player game, meaning that its evolution is

determined by its initial state, requiring no further input. One interacts with the Game of Life by

creating an initial configuration and observing how it evolves.

The universe of the Game of Life is an infinite, two$-$dimensional orthogonal grid of square cells,

each of which is in one of two possible states, live or dead $($or populated and unpopulated,

respectively$).$ Every cell interacts with its eight neighbors, which are the cells that are

horizontally, vertically, or diagonally adjacent. At each step in time, the following two rules are

applied to every cell:

Any live cell with fewer than two or more than $3$ live neighbors dies.

Any dead cell with exactly three live neighbors becomes a live cell.

The initial pattern constitutes the seed of the system. The first generation is created by applying

the above rules simultaneously to every cell in the seed, live or dead; births and deaths occur

simultaneously, and the discrete moment at which this happens is sometimes called a tick. Each

generation is a pure function of the preceding one. The rules continue to be applied repeatedly

to create further generations.

Requirements

A program is needed to allow a user to set an initial configuration for a $55$ grid of cells and then

display its evolution for $7$ generations where the initial configuration is generation $0$ and the last

is generation $6.$ The user is prompted for an initial configuration and enters it as a comma

separted list of integers where each integer is an offset into the grid as a linear array in which

the first element, $0,$ is at the top left, ie$.[0][0].$ See the sample run below.
