Question: collar fixed to the member as shown. Determine the components of reaction at ( boldsymbol { A } ) and the tension

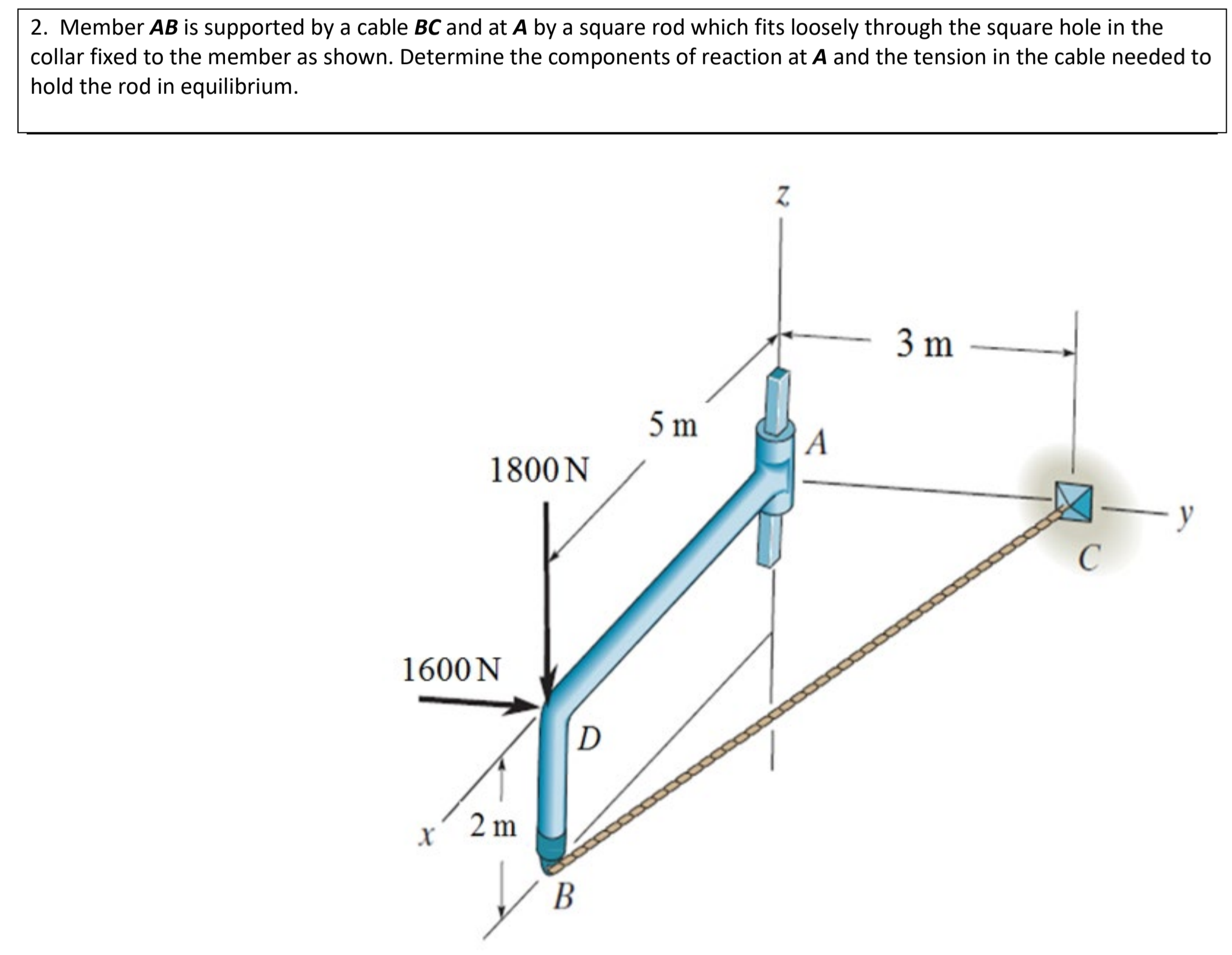

collar fixed to the member as shown. Determine the components of reaction at \(\boldsymbol{A}\) and the tension in the cable needed to hold the rod in equilibrium.
collar fixed to the member as shown. Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The three forces act on the pipe assembly. If F1 = 50 N and F2 = 80 N, replace this force system by an equivalent resultant force and couple moment acting at O. Express the results in Cartesian...

Q:

Member AB is supported by a cable BC and at A by a square rod which fits loosely through the square hole in the collar fixed to the member as shown. Determine the components of reaction at A and the...

Q:

*5-92. Determine the reactions at the supports A and B for equilibrium of the beam. 400 N/m 200 N /m 3 m 4 m Prob. 5-925-78. Member AB is supported by a cable BC and at A by a square rod which fits...

Q:

Member AB is supported by a cable BC and at A by a square rod which fits loosely through the square hole at the end joint of the member as shown. Determine the components of reaction at A and the...

Q:

Member AB is supported by cable BC and at A by a square rod which fits loosely through the square hole at the end joint of the member as shown. Determine the components of reaction at A and the...

Q:

Please solve this question in details and explaination. Thanks so much. Member AB is supported by cable BC, and at support A by a square rod which fits loosely through the square hole in the collar...

Q:

Please solve this question in details and explaination. Thanks so much. Member AB is supported by cable BC, and at support A by a square rod which ts loosely through the square hole in the collar xed...

Q:

A B is supported by a cable B C and at A by a square rod its loosely through the square hole at the end joint of the er as shown. ( Figure 1 ) Part A Determine the tension in the cable needed to hold...

Q:

7. Cable Systems Data There are many ways to solve these RORI E F G H R 2 questions , here I won't solve it with the same sequence as it is on the website a 34 D 1) Finding the vertical components of...

Q:

Member AB is supported at B by a cable and at A by a smooth fixed square rod which fits loosely through the square hole of the collar. If F = {20i ? 40j ? 75k}, determine the x, y, z components of...

Q:

The forked rod is supported by a collar at A, a thrust bearing at B, and a cable CD. Determine the tension within cable CD and the x, y, z components of reaction at supports A and B due to the...
