Question: Collars A and B are connected by a 2 5 - in . - long wire and can slide freely on frictionless rods. Determine the

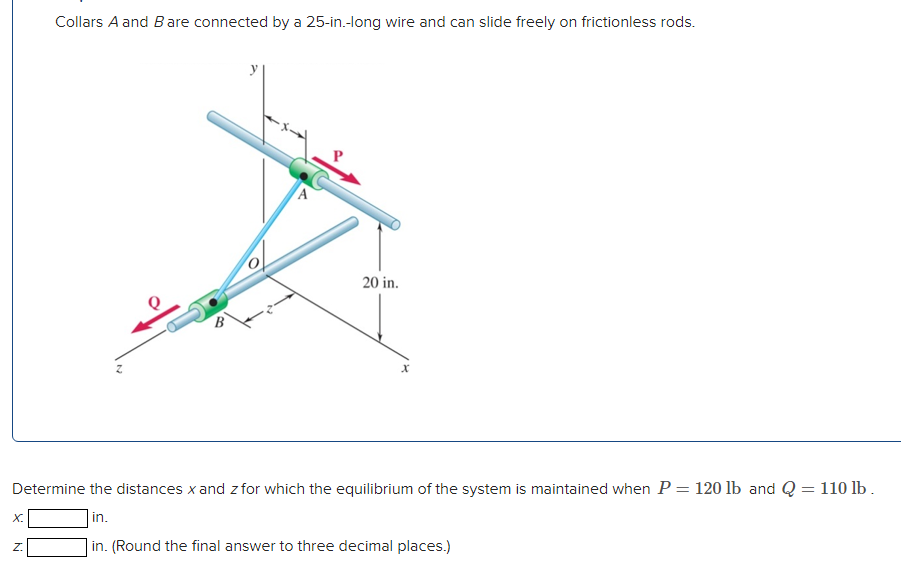

Collars A and B are connected by a 25-in.-long wire and can slide freely on frictionless rods.
Determine the distances x and z for which the equilibrium of the system is maintained when P=120lb and Q=110lb.x in. in.
z., in.(Round the final answer to three decimal places.)
Collars A and B are connected by a 2 5 - in . -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Collars A and B are connected by a 25-in.-long wire and can slide freely on frictionless rods. Determine the distances x and z for which the equilibrium of the system is maintained when P = 120 lb...
