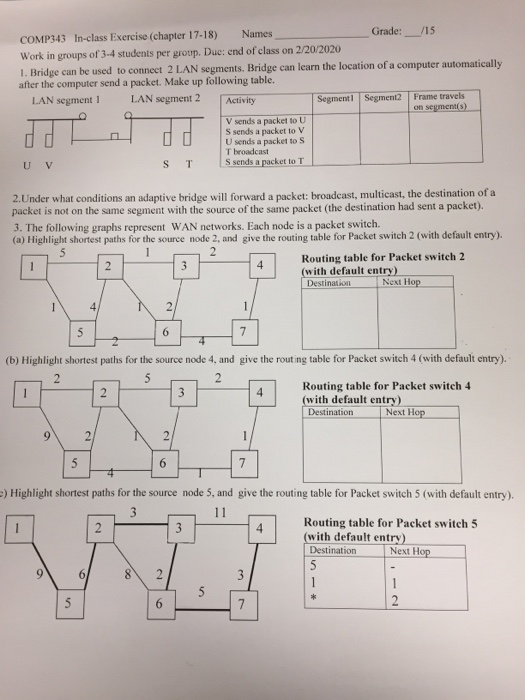

COMP343 In-class Exercise (chapter 17-18) Names Grade:_715 Work in groups of 3-4 students per group. Due: end of class on 2/20/2020 1. Bridge can be used to connect 2 LAN segments. Bridge can learn the location of a computer automatically after the computer send a packet. Make up following table. LAN segment 1 LAN segment 2 Activity Segment Segment2 Frame travels on segment(s) V sends a packet to U S sends a packet to V U sends a packet to S T broadcast U v ST Ssends a packet to T 2.Under what conditions an adaptive bridge will forward a packet: broadcast, multicast, the destination of a packel is not on the same segment with the source of the same packet (the destination had sent a packet). 3. The following graphs represent WAN networks. Each node is a packet switch. (a) Highlight shortest paths for the source node 2, and give the routing table for Packet switch 2 (with default entry) Routing table for Packet switch 2 (with default entry) Destination Next Hop (b) Highlight shortest paths for the source node 4, and give the routing table for Packet switch 4 (with default entry). Routing table for Packet switch 4 (with default entry) Destination Next Hop e) Highlight shortest paths for the source node 5, and give the routing table for Packet switch 5 (with default entry). Routing table for Packet switch 5 (with default entry) Destination Next Hop 6/ 8 27
