Compiler Construction-Recursive descent parser

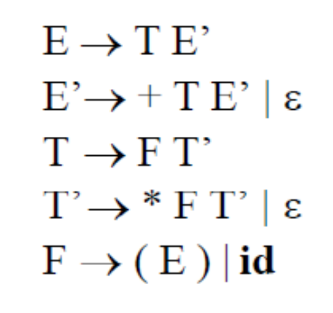

Single source code in c++ .Create a recursive descent parser as per the code in lecture 14 for the following grammar

CODE IN LECTURE:

#include  #include  #include  using namespace std; int ch; void error(char *msg){ printf("Error - found character %c - %s ",ch,msg); exit(1); } void b(){ if (ch=='y') ch = getchar(); else error("y expected "); } void a(){ if(ch=='x'){ ch = getchar(); a(); } else b(); } void s(){ if (ch=='z') ch = getchar(); else{ a(); if (ch!='z') error("z expected "); else ch = getchar(); } printf("success! "); } int main(int argc,char *argv[]) { ch=getchar(); s(); return 0; }

//////////////////////////////////////////////////////////////////////////////

For your reference, this is the original grammar, that had to be modified so the recursive descent parser would be able to handle :

E-> E + T | T

T-> T* F | F

F-> ( E ) | id

Prepare input by hand in the following format

Actual input line

Tokens extracted by hand, one per line

For example:

For the code example during the lecture, a grammar was used where each terminal and each non-terminal was a single character

S-> Az|z

A->xA|B

B->y

///////////

-For the grammar you have for the assignment, you have multi-character symbols for both So string handling will be required instead of just character handling

Your parser should print out either

-Parsed successfully

-Failed

ETE E+TE TFT TFT F(E)id \begin{tabular}{l} \hlinex+yz \\ id \\ + \\ id \\ \\ id \end{tabular}
