Question: Complete 3 . 6 6 from the course text. 3 / 6 6 The body is constructed of uniform slender rod which has mass per

Complete 3.66 from the course text.

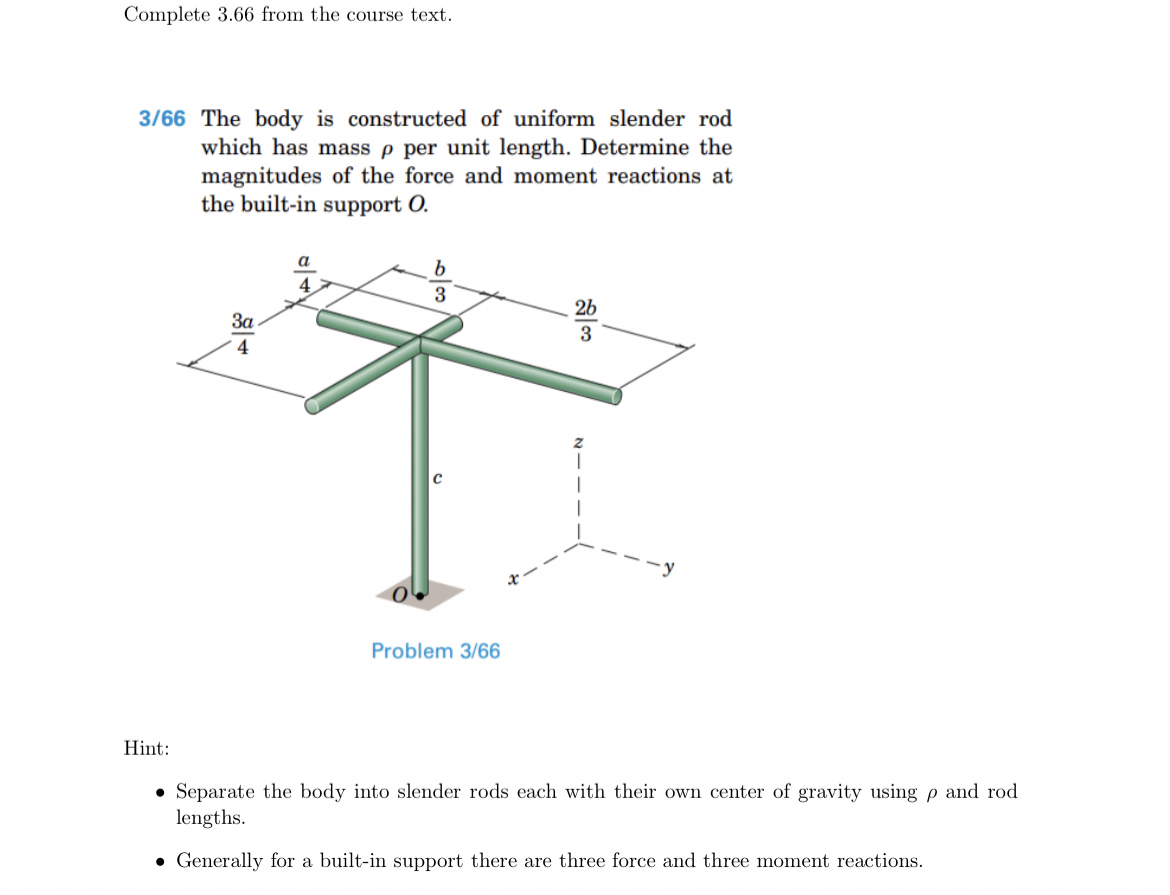

3/66 The body is constructed of uniform slender rod which has mass per unit length. Determine the magnitudes of the force and moment reactions at the built-in support O.
Hint:
Separate the body into slender rods each with their own center of gravity using and rod lengths.
Generally for a built-in support there are three force and three moment reactions.
Complete 3 . 6 6 from the course text. 3 / 6 6

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
