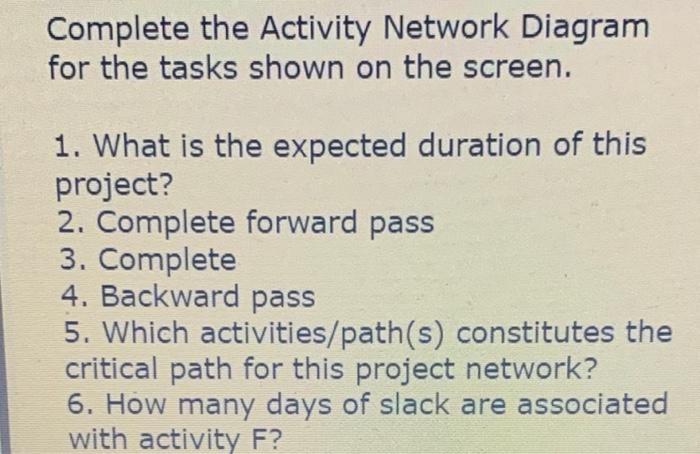

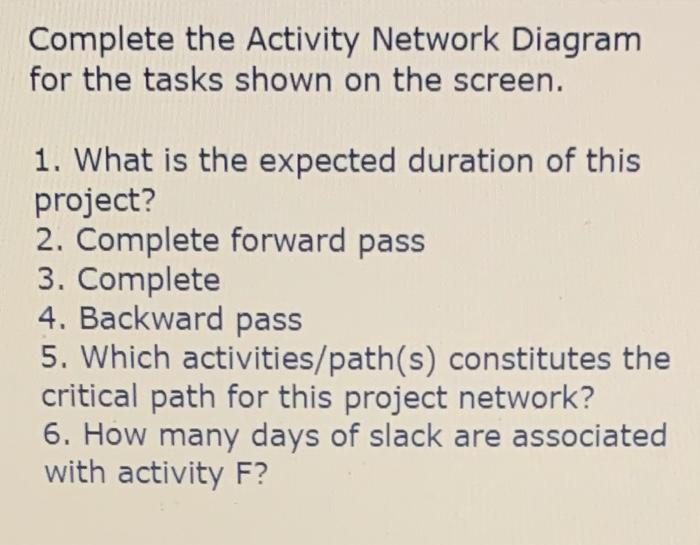

Question: Complete the Activity Network Diagram for the tasks shown on the screen. 1. What is the expected duration of this project? 2. Complete forward pass

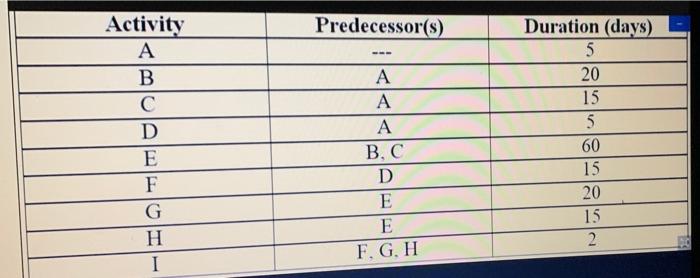

Complete the Activity Network Diagram for the tasks shown on the screen. 1. What is the expected duration of this project? 2. Complete forward pass 3. Complete 4. Backward pass 5. Which activities/path(s) constitutes the critical path for this project network? 6. How many days of slack are associated with activity F? Predecessor(s) Activity A B D E F G H I A A A B, C D E E F G H Duration (days) 5 20 15 5 60 15 20 15 2 Complete the Activity Network Diagram for the tasks shown on the screen. 1. What is the expected duration of this project? 2. Complete forward pass 3. Complete 4. Backward pass 5. Which activities/path(s) constitutes the critical path for this project network? 6. How many days of slack are associated with activity F
