Question: Complete the following truth table for the equations below and write the function as a product of maxterms. Then write it the equation in the

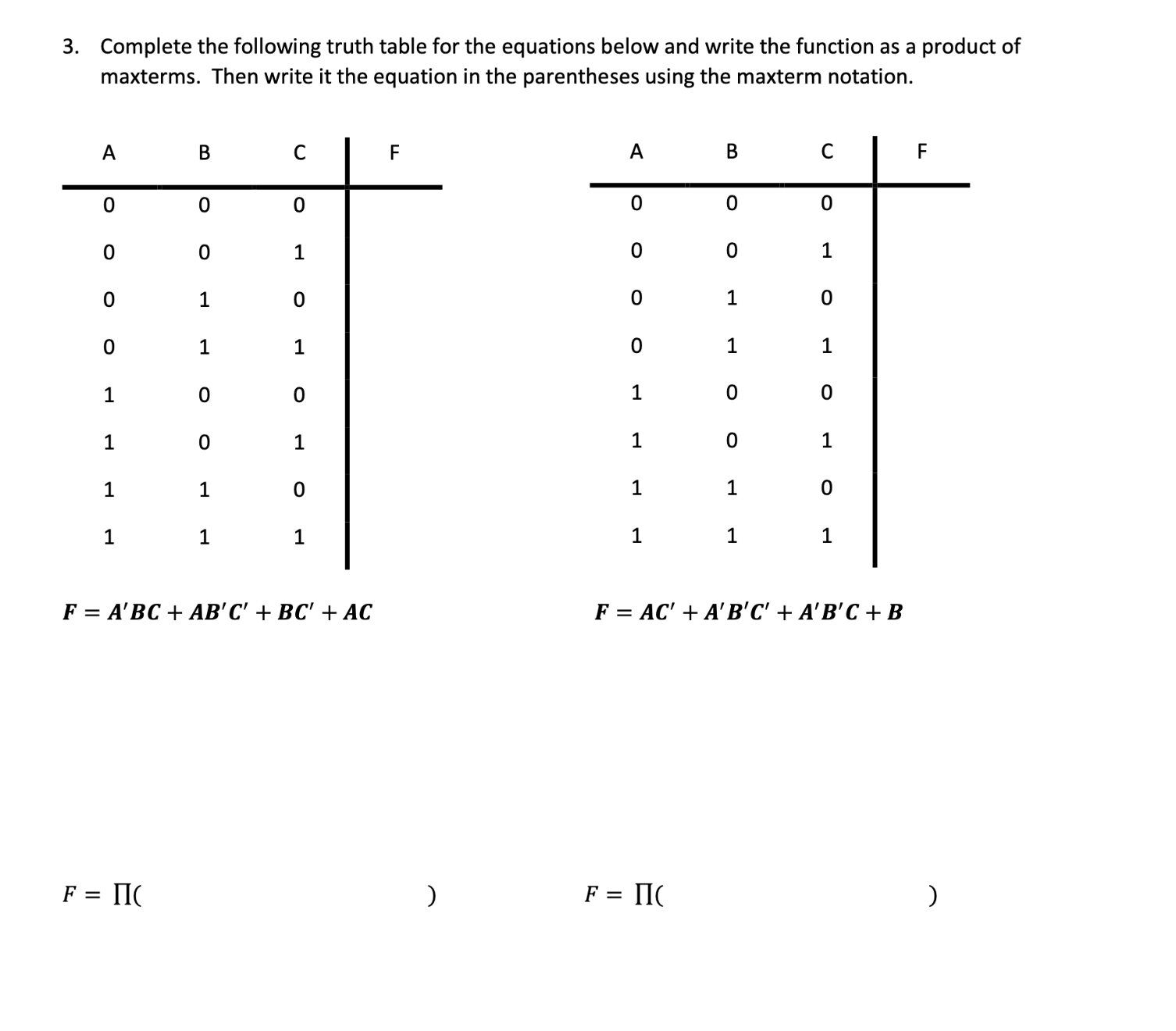

Complete the following truth table for the equations below and write the function as a product of
maxterms. Then write it the equation in the parentheses using the maxterm notation.
F=A'BC+AB'C'+BC'+AC
F=AC'+A'B'C'+A'B'C+B
Complete the following truth table for the equations below and write

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
