Complete Tutorial 1-C (see ANSYS Tutorial Release 2020 pdf file on Canvas, Pages 1-18). Submit screenshots of (a) the displacement vector sum table, (b) the original and the deformed truss shapes, and submit your .db file to Canvas.\ Problem 1-1 (see Page 1-31 of the same pdf file, neglect buckling, only provide the maximum displacement and maximum stress). The vertical force is

40,000lbf

. Submit screenshots of the tables which provide the requested values (be sure to highlight/circle the correct number) and submit your .db file to Canvas.\ Problem 1-5 (see Page 1-32 of the pdf file, neglect buckling). Assume the force

P=5,000lbf

. Submit screenshots of the tables which provide the requested values (be sure to highlight/circle the correct number) and submit your .db file to Canvas.

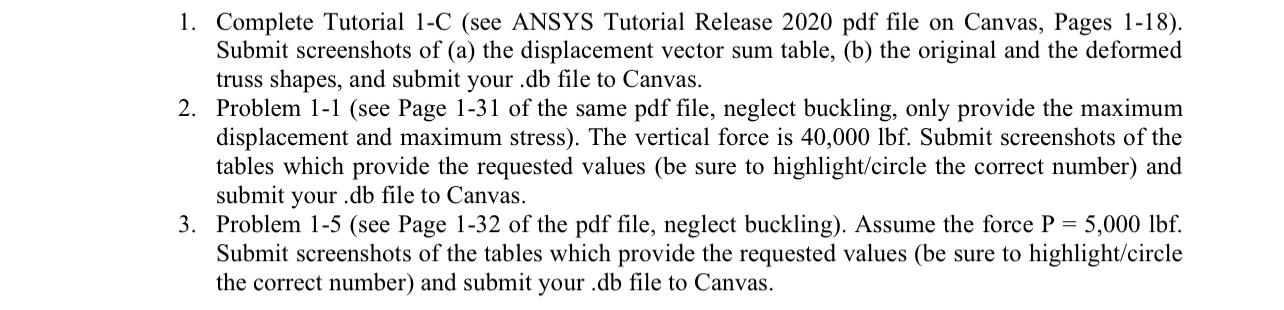

1. Complete Tutorial 1-C (see ANSYS Tutorial Release 2020 pdf file on Canvas, Pages 1-18). Submit screenshots of (a) the displacement vector sum table, (b) the original and the deformed truss shapes, and submit your .db file to Canvas. 2. Problem 1-1 (see Page 1-31 of the same pdf file, neglect buckling, only provide the maximum displacement and maximum stress). The vertical force is 40,000lbf. Submit screenshots of the tables which provide the requested values (be sure to highlight/circle the correct number) and submit your .db file to Canvas. 3. Problem 1-5 (see Page 1-32 of the pdf file, neglect buckling). Assume the force P=5,000lbf. Submit screenshots of the tables which provide the requested values (be sure to highlight/circle the correct number) and submit your .db file to Canvas
