Composition Design Pattern

File$/$Folder combination is a typical example of the composite design pattern. A file has a name, size, and extension.

A folder has similar attribute $($without an extension$)$ plus a list of files or other folders. You are required to write a

demonstration application that traverses files and folders in a selected directory.

Class diagram

Design a class diagram showing the above$-$mentioned structure using the composite design oastern. You have to

show all companents including the Application class.

Application

$[90$ marks$]$

Implement a Net deskitop application $($CH or VB$)$ by which you can choose a certain folder when the program starts.

Once you select a folder, you should recursinely traverse all of its contents $($files and folders$)$ and fill the required

information as follows:

Folder : only name

File : name, size, extension

After traversing, your application should use the traversed structure you just created to visualize the size of files and

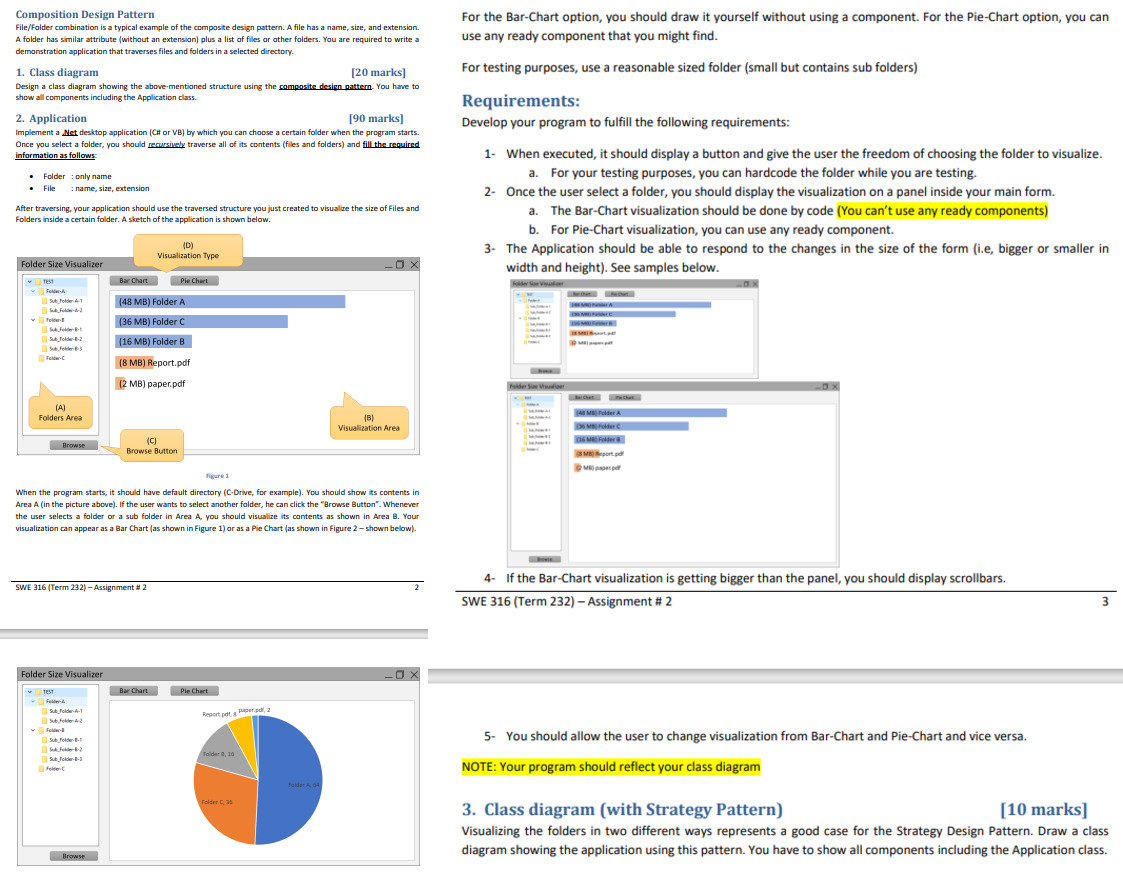

Folders inside a certain folder. A sketch of the application is shown below.

When the program starts, it should have default directory $($C$-$Drive, for example$).$ You should show its contents in

Area A $($in the picture above$).$ If the user wants to select another folder, he can click the "Browse Button". Whenever

the user selects a folder or a sub folder in Area A$,$ you should visualize its contents as shown in Area $B.$ Your

visualization can appear as a Bar Chart $($as shown in Figure $1)$ or as a Pie Chart $($as shown in Figure $2-$ shown below$).$

For the Bar$-$Chart option, you should draw it yourself without using a component. For the Pie$-$Chart option, you can

use any ready component that you might find.

For testing purposes, use a reasonable sized folder $($small but contains sub folders$)$

Requirements:

Develop your program to fulfill the following requirements:

$1-$ When executed, it should display a button and give the user the freedom of choosing the folder to visualize.

a$.$ For your testing purposes, you can hardcode the folder while you are testing.

$2-$ Once the user select a folder, you should display the visualization on a panel inside your main form.

a$.$ The Bar$-$Chart visualization should be done by code $($You can't use any ready components$)$

b$.$ For Pie$-$Chart visualization, you can use any ready component.

$3-$ The Application should be able to respond to the changes in the size of the form $($i$.$e$,$ bigger or smaller in

$5-$ You should allow the user to change visualization from Bar$-$Chart and Pie$-$Chart and vice versa.

NOTE: Your program should reflect your class diagram

Class diagram $($with Strategy Pattern$)$

$[10$ marks$]$

Visualizing the folders in two different ways represents a good case for the Strategy Design Pattern. Draw a class

diagram showing the application using this pattern. You have to show all components including the Application class.
