Compute processing throughput and latency of the system:

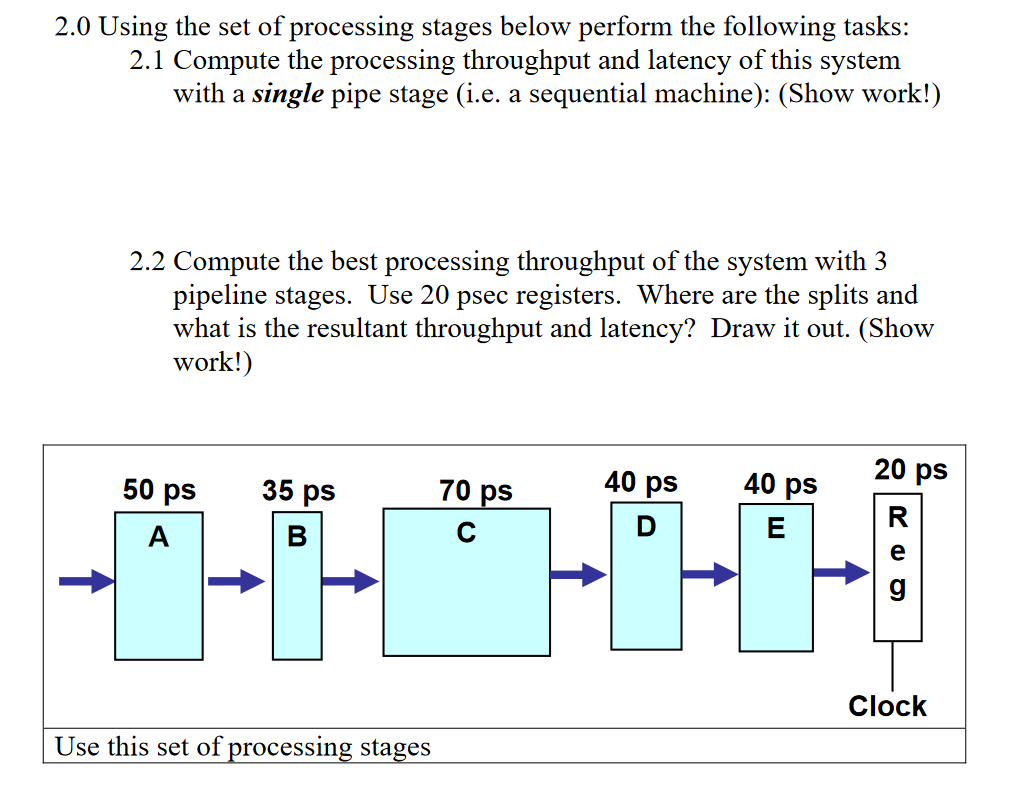

2.0 Using the set of processing stages below perform the following tasks: 2.1 Compute the processing throughput and latency of this system with a single pipe stage (i.e. a sequential machine): (Show work!) 2.2 Compute the best processing throughput of the system with 3 pipeline stages. Use 20 psec registers. Where are the splits and what is the resultant throughput and latency? Draw it out. (Show work!) 50 ps 20 ps 35 ps 70 ps 40 ps L 40 ps Clock | Use this set of processing stages
