Question: Compute the controlling block shear strength using the detail below when the gusset plate is A 3 6 steel. The channel is loaded in tension

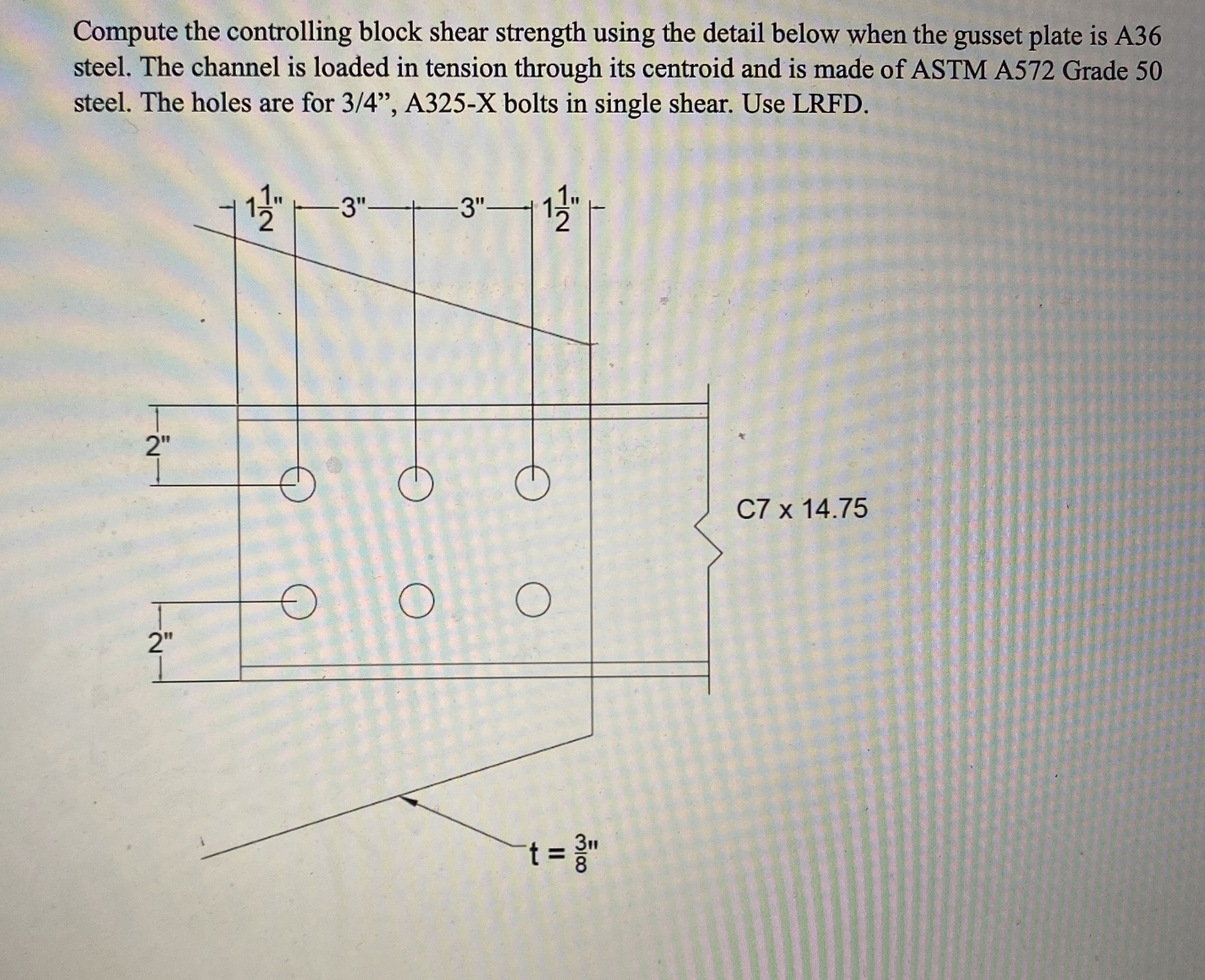

Compute the controlling block shear strength using the detail below when the gusset plate is A36 steel. The channel is loaded in tension through its centroid and is made of ASTM A572 Grade 50 steel. The holes are for 3/4", A325-X bolts in single shear. Use LRFD.
Compute the controlling block shear strength

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
