Question: Computer architecture Prove the identities using Boolean algebra and Truth Table. (x + y) + z = xyz + xyz + xyz + xyz XY

Computer architecture Computer architecture Prove the identities using Boolean algebra and Truth Table.

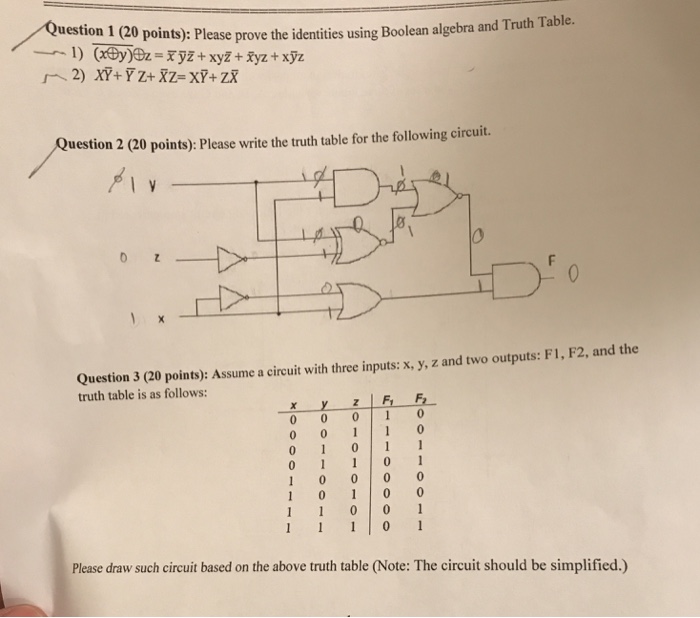

Prove the identities using Boolean algebra and Truth Table. (x + y) + z = xyz + xyz + xyz + xyz XY + YZ + XZ = XY + ZX Please write the truth table for the following circuit. Assume a circuit with three inputs. x. y, z and two outputs: F1F2 and the truth table is as follows: Please draw such circuit based on the above truth table
