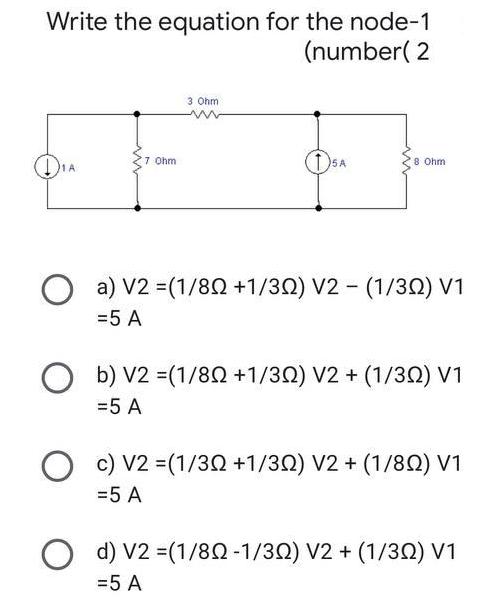

Question: Write the equation for the node-1 (number( 2 3 Ohm 7 Ohm 5 A 8 Ohm 1A a) V2 =(1/82 +1/30) V2 - (1/30)

Write the equation for the node-1 (number( 2 3 Ohm 7 Ohm 5 A 8 Ohm 1A a) V2 =(1/82 +1/30) V2 - (1/30) V1 =5 A O b) V2 =(1/8Q +1/32) V2 + (1/32) V1 =5 A O c) V2 =(1/3N +1/30) V2 + (1/8N) V =5 A d) V2 = (1/80 -1/30) V2 + (1/30) V1 =5 A

Step by Step Solution

★★★★★

3.45 Rating (165 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
