Computer Science fast fast pls pls

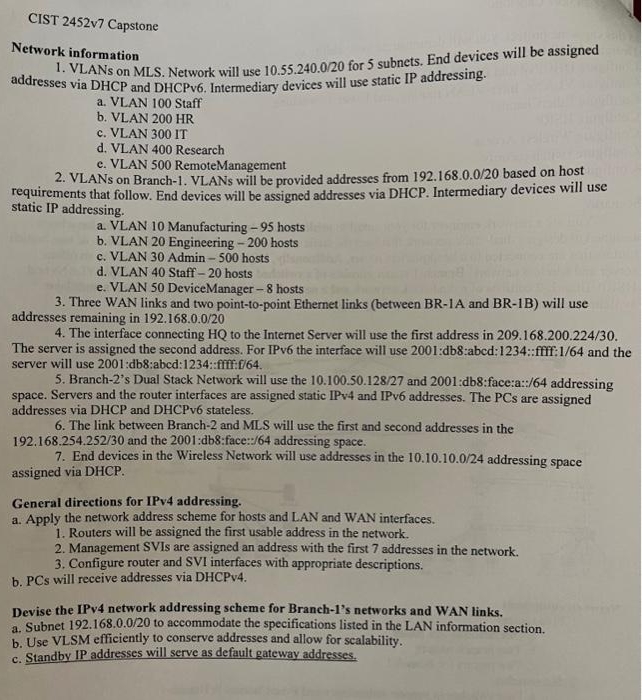

CIST $2452$v$7$ Capstone

Network information

VLANs on MLS$.$ Network will use $10\mathrm{.}55.\frac{240\mathrm{.}0}{20}$ for $5$ subnets. End devices will be assigned addresses via DHCP and DHCPv$6.$ Intermediary devices will use static IP addressing.

a$.$ VLAN $100$ Staff

b$.$ VLAN $200$ HR

c$.$ VLAN $300$ IT

d$.$ VLAN $400$ Research

c$.$ VLAN $500$ RemoteManagement

VLANs on Branch$-1.$ VLANs will be provided addresses from $192\mathrm{.}168\mathrm{.}0\mathrm{.}0/20$ based on host requirements that follow. End devices will be assigned addresses via DHCP$.$ Intermediary devices will use static IP addressing.

a$.$ VLAN $10$ Manufacturing $-95$ hosts

b$.$ VLAN $20$ Engineering $-200$ hosts

c$.$ VLAN $30$ Admin $-500$ hosts

d$.$ VLAN $40$ Staff $-20$ hosts

e$.$ VLAN $50$ DeviceManager $-8$ hosts

Three WAN links and two point$-$to$-$point Ethernet links $($between BR$-1$A and BR$-1$B$)$ will use addresses remaining in $192\mathrm{.}168\mathrm{.}0\mathrm{.}0/20$

The interface connecting HQ to the Internet Server will use the first address in $209\mathrm{.}168\mathrm{.}200\mathrm{.}224/30.$ The server is assigned the second address. For IPv$6$ the interface will use $2001$:db$81234$::ffff: $\frac{1}{64}$ and the server will use $2001$:db$81234$:ffff:f$/64.$

Branch$-2\text{'}$s Dual Stack Network will use the $10\mathrm{.}100\mathrm{.}50\mathrm{.}128/27$ and $2001$:db$8$:face$$:$/64$ addressing space. Servers and the router interfaces are assigned static IPv$4$ and IPv$6$ addresses. The PCs are assigned addresses via DHCP and DHCPv$6$ stateless.

The link between Branch$-2$ and MLS will use the first and second addresses in the $192\mathrm{.}168\mathrm{.}254\mathrm{.}252/30$ and the $2001$: db$8$:face::$/64$ addressing space.

End devices in the Wireless Network will use addresses in the $10\mathrm{.}10\mathrm{.}10\mathrm{.}0/24$ addressing space assigned via DHCP$.$

General directions for IPv$4$ addressing.

a$.$ Apply the network address scheme for hosts and LAN and WAN interfaces.

Routers will be assigned the first usable address in the network.

Management SVIs are assigned an address with the first $7$ addresses in the network.

Configure router and SVI interfaces with appropriate descriptions.

b$.$ PCs will receive addresses via DHCPv$4.$

Devise the IPv$4$ network addressing scheme for Branch$-1\text{'}$s networks and WAN links.

a$.$ Subnet $192\mathrm{.}168\mathrm{.}0\mathrm{.}0/20$ to accommodate the specifications listed in the LAN information section.

b$.$ Use VLSM efficiently to conserve addresses and allow for scalability.

c$.$ Standby IP addresses will serve as default gateway addresses.
