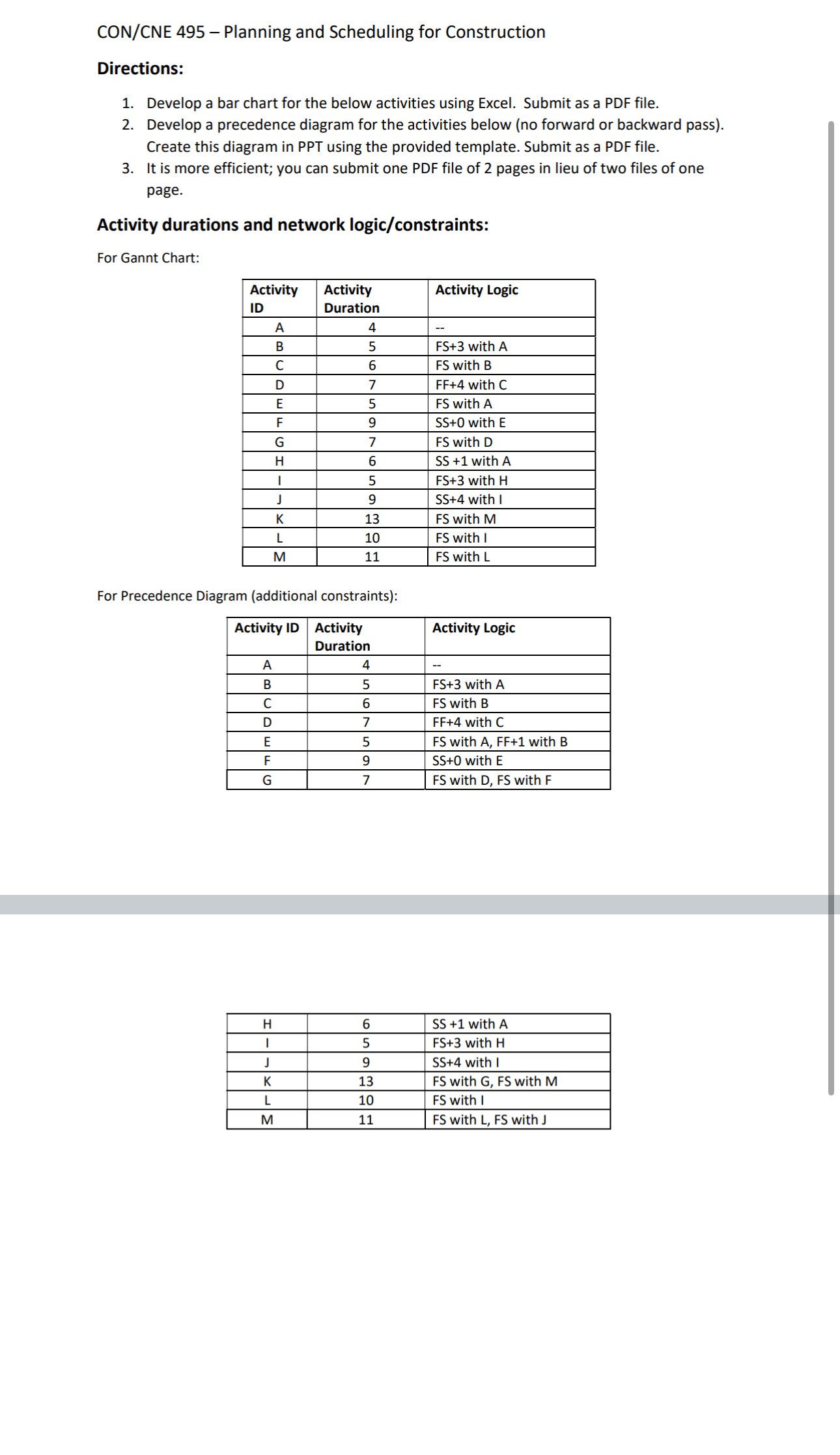

CON$/$CNE $495-$ Planning and Scheduling for Construction

Directions:

Develop a bar chart for the below activities using Excel. Submit as a PDF file.

Develop a precedence diagram for the activities below $($no forward or backward pass$).$ Create this diagram in PPT using the provided template. Submit as a PDF file.

It is more efficient; you can submit one PDF file of $2$ pages in lieu of two files of one page.

Activity durations and network logic$/$constraints:

For Gannt Chart:

$\backslash$table$[[\backslash$table$[[$Activity$],[$ID$]],\backslash$table$[[$Activity$],[$Duration$]],$Activity Logic$],[$A$,4,--],[$B$,5,$FS$+3$ with A$],[$C$,6,$FS with B$],[$D$,7,$FF$+4$ with C$],[$E$,5,$FS with A$],[$F$,9,$SS$+0$ with E$],[$G$,7,$FS with D$],[$H$,6,$SS $+1$ with A$],[$I$,5,$FS$+3$ with H$],[$J$,9,$SS$+4$ with I$],[$K$,13,$FS with M$],[$L$,10,$FS with I$],[$M$,11,$FS with L$]]$

For Precedence Diagram $($additional constraints$)$:

$\backslash$table$[[$Activity ID$,\backslash$table$[[$Activity$],[$Duration$]],$Activity Logic$],[$A$,4,--],[$B$,5,$FS$+3$ with A$],[$C$,6,$FS with B$],[$D$,7,$FF$+4$ with C$],[$E$,5,$FS with A$,$ FF$+1$ with B$],[$F$,9,$SS$+0$ with E$],[$G$,7,$FS with D$,$ FS with F$]]$

$\backslash$table$[[$H$,6,$SS $+1$ with A$],[$I$,5,$FS$+3$ with H$],[$J$,9,$SS$+4$ with I$],[$K$,13,$FS with G$,$ FS with M$],[$L$,10,$FS with I$],[$M$,11,$FS with L$,$ FS with J$]]$
