Question: Concrete Density ( y . ) = 2 5 kN / m ' Fou = 3 0 N / mm ? Flooring = 1 kN

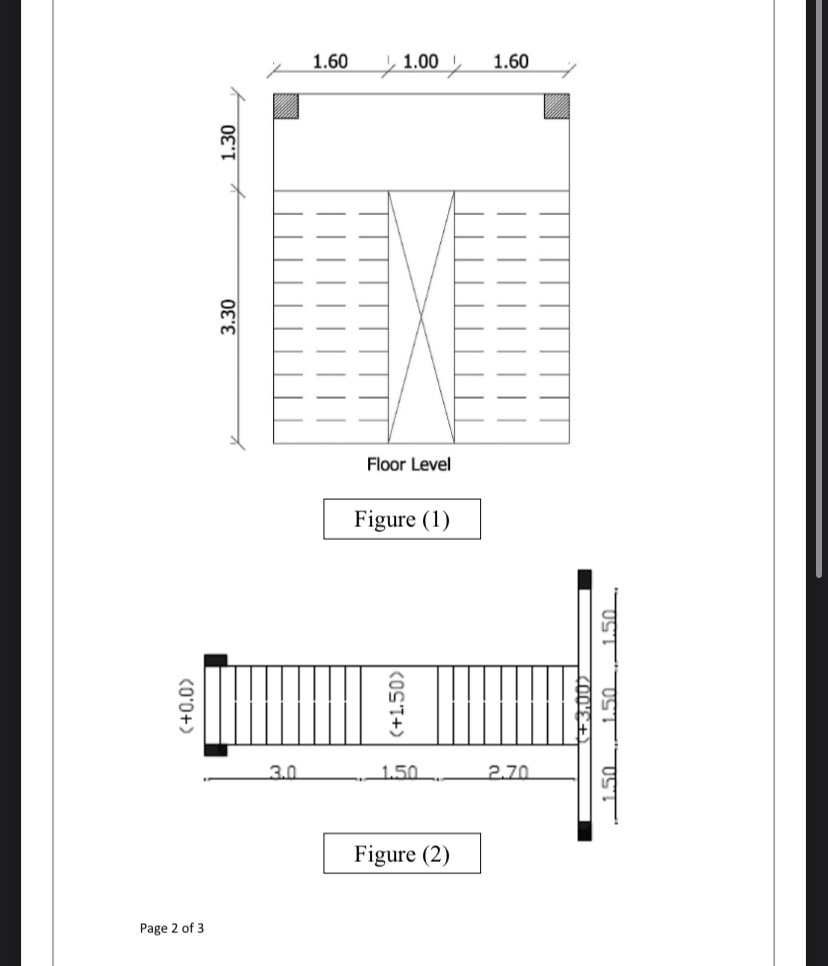

Concrete Density (y.)=25 kN/m'Fou =30N/mm?Flooring =1 kN/m'Fy =400N/mm'Live Load =3.0 kN/m?Floor hight =3.0mWall Thickness =120 mmWall Density (yw)=18 kN/m'Dimension of any beam =250*900 Dimension of Step =150*300mmGiven Data for figures 1 & 2:It is required to:1- Suggest structural systems for figures 1& 2.2- Design the staircase for both figures.3- Draw to a convenient scale for the details of the stairs and supporting beams for both figures.
Concrete Density ( y . ) = 2 5 kN / m ' Fou = 3 0

Step by Step Solution
