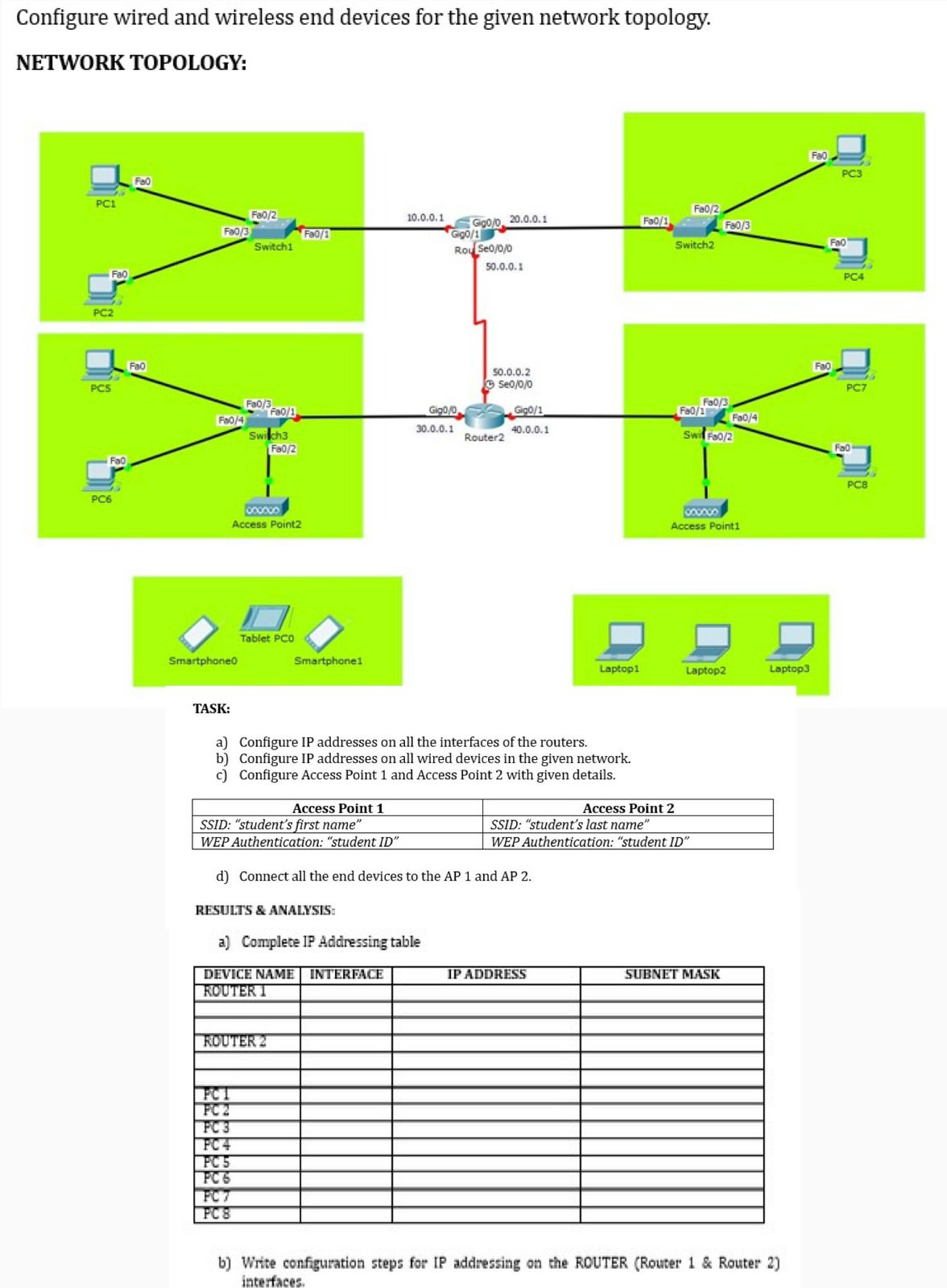

Configure wired and wireless end devices for the given network topology.

Laptop$1$

Laptop$2$

Laptop$3$

TASK:

a$)$ Configure IP addresses on all the interfaces of the routers.

b$)$ Configure IP addresses on all wired devices in the given network.

c$)$ Configure Access Point $1$ and Access Point $2$ with given details.

$\begin{array}{cc}\text{A}\text{c}\text{c}\text{e}\text{s}\text{s}\text{P}\text{o}\text{i}\text{n}\text{t}1& \text{A}\text{c}\text{c}\text{e}\text{s}\text{s}\text{P}\text{o}\text{i}\text{n}\text{t}2\\ \text{S}\text{S}\text{I}\text{D}\text{:}\text{"}\text{s}\text{t}\text{u}\text{d}\text{e}\text{n}\text{t}\text{'}\text{s}\text{f}\text{i}\text{r}\text{s}\text{t}\text{n}\text{a}\text{m}\text{e}\text{"}& \text{S}\text{S}\text{I}\text{D}\text{:}\text{"}\text{s}\text{t}\text{u}\text{d}\text{e}\text{n}\text{t}\text{'}\text{s}\text{l}\text{a}\text{s}\text{t}\text{n}\text{a}\text{m}\text{e}\text{"}\\ \text{W}\text{E}\text{P}\text{A}\text{u}\text{t}\text{h}\text{e}\text{n}\text{t}\text{i}\text{c}\text{a}\text{t}\text{i}\text{o}\text{n}\text{:}\text{"}\text{s}\text{t}\text{u}\text{d}\text{e}\text{n}\text{t}ID"& \text{W}\text{E}\text{P}\text{A}\text{u}\text{t}\text{h}\text{e}\text{n}\text{t}\text{i}\text{c}\text{a}\text{t}\text{i}\text{o}\text{n}\text{:}\text{"}\text{s}\text{t}\text{u}\text{d}\text{e}\text{n}\text{t}ID"\end{array}$

d$)$ Connect all the end devices to the AP $1$ and AP $2.$

RESULTS & ANALYSIS:

a$)$ Complete IP Addressing table

$\backslash$table$[[$DEVICE NAME,INTERFACE,IPADDRESS,SUBNET MASK$],[$ROUTER I,,,$],[,,,],[,,,],[$ROUTER $2,,,],[,,,],[,,,],[$PCI$,,,],[$PC$2,,,],[$PC$3,,,],[$PC$4,,,],[$PC$5,,,],[$PC$6,,,],[$PC$7,,,],[$PC$8,,,]]$

b$)$ Write configuration steps for IP addressing on the ROUTER $($Router $1$ & Router $2)$ interfaces.
