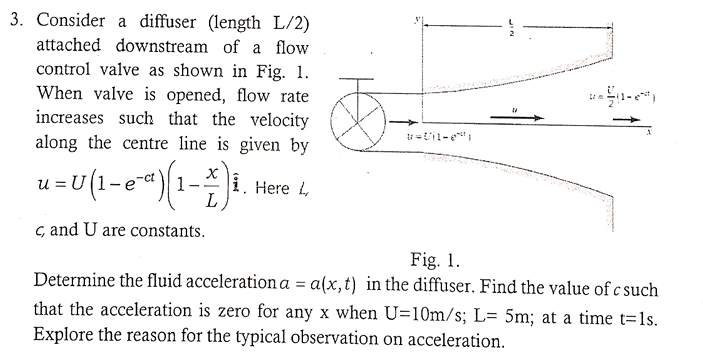

Question: Consider a diffuser ( length L 2 ) attached downstream of a flow control valve as shown in Fig. 1 . When valve is opened,

Consider a diffuser (length L2) attached downstream of a flow control valve as shown in Fig. 1. When valve is opened, flow rate increases such that the velocity along the centre line is given by u=U(1-e-ct)(1-xL)hat(i). Here Lc, and U are constants.
Fig. 1.
Determine the fluid acceleration a=a(x,t) in the diffuser. Find the value of c such that the acceleration is zero for any x when U=10ms; L=5m; at a time t=1s. Explore the reason for the typical observation on acceleration.
Consider a diffuser ( length L 2 ) attached
