Question: Consider a rectangular steel plate ( k = 1 5 W / m . K ) subjected to the boundary conditions illustrated in the following

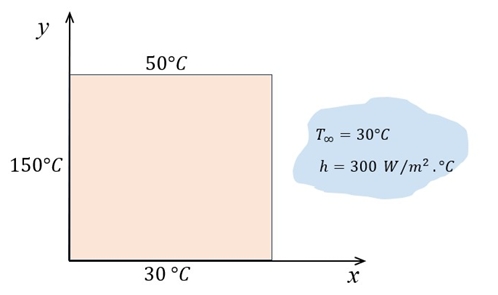

Consider a rectangular steel plate (k=15 W/m.K) subjected to the boundary conditions illustrated in the following figure. The edge on the right side of the plate is subjected to a convection, where the heat convection coefficient is 150 W/m2.K and the temperature of the fluid is 25C. The width of the sheet is 0.5 m and the height is 0.5 m. Use a discretization uniform (x = y=0.1 m) for Finite Difference modeling and determine the temperature distribution on the plate, knowing that it is in a steady state.
Consider a rectangular steel plate ( k = 1 5 W /

Step by Step Solution

There are 3 Steps involved in it
