Question: Consider a SDOF system shown in figure 2 . It undergoes underdamped free vibrations. The mass = 4 0 k N - s 2 m

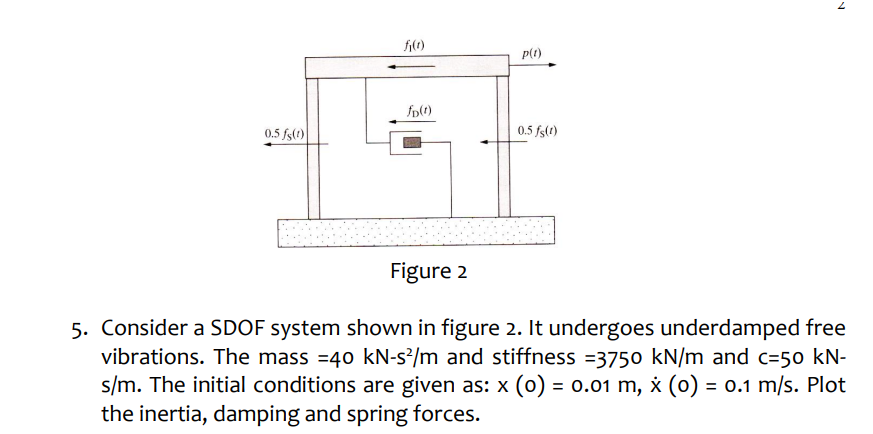

Consider a SDOF system shown in figure 2. It undergoes underdamped free vibrations. The mass =40kN-s2m and stiffness =3750kNm and c=50kN-sm. The initial conditions are given as: x(o)=0.01m,x(o)=0.1ms. Plot the inertia, damping and spring forces.
Consider a SDOF system shown in figure 2 . It

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
