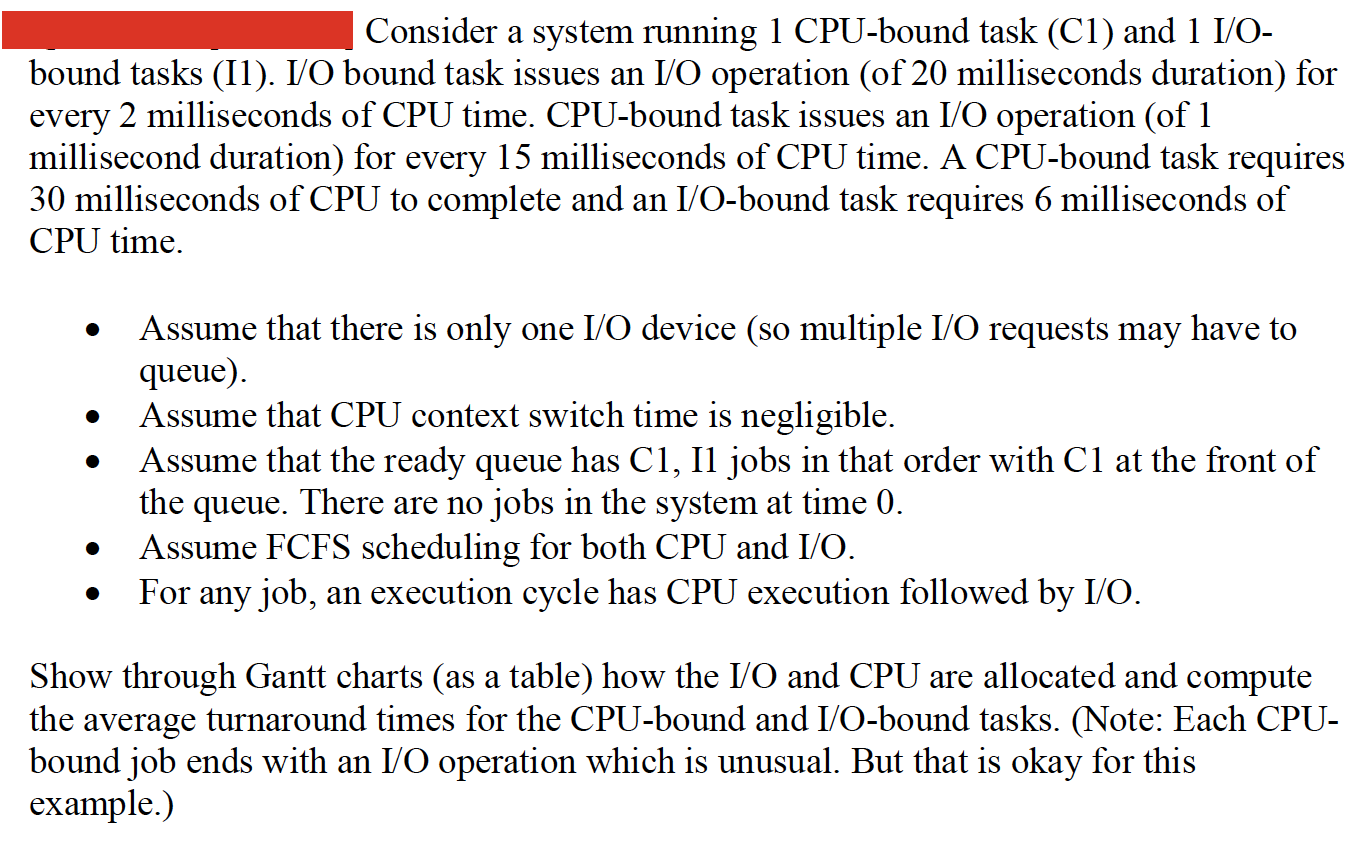

Consider a system running $1$ CPU$-$bound task $($C$1)$ and $1$ I$/$O$-$

bound tasks $($I$1).$ I$/$O bound task issues an I$/$O operation $($of $20$ milliseconds duration$)$ for

every $2$ milliseconds of CPU time. CPU$-$bound task issues an I$/$O operation $($of $1$

millisecond duration$)$ for every $15$ milliseconds of CPU time. A CPU$-$bound task requires

$30$ milliseconds of CPU to complete and an I$/$O$-$bound task requires $6$ milliseconds of

CPU time.

Assume that there is only one I$/$O device $($so multiple I$/$O requests may have to

queue$).$

Assume that CPU context switch time is negligible.

Assume that the ready queue has $C1,I1$ jobs in that order with C $1$ at the front of

the queue. There are no jobs in the system at time $0.$

Assume FCFS scheduling for both CPU and I$/$O$.$

For any job, an execution cycle has CPU execution followed by I$/$O$.$

Show through Gantt charts $($as a table$)$ how the I$/$O and CPU are allocated and compute

the average turnaround times for the CPU$-$bound and I$/$O$-$bound tasks. $($Note: Each CPU$-$

bound job ends with an I$/$O operation which is unusual. But that is okay for this

example.$)$
