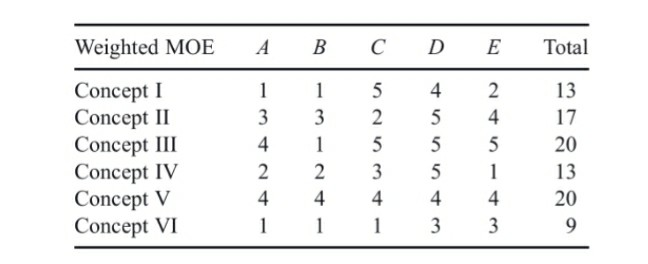

Consider a trade study that involves six alternative system concepts. Five MOEs, titled A, B, C, D and E were used each weighted equally. The table below shows the results after assigning values to each MOE of the six alternatives.

3. Consider a trade study that involves six alternative system concepts. Five MOEs, titled A, B, C, D and E were used each weighted equally. The table below shows the results after assigning values to each MOE of the six alternatives.

On the basis of the indicated ratings: a. Create a graph of criteria profile for each concept. b. Determine which of the concepts is superior? Explain your answer. c. What further information would you try to obtain to help you make your decision?

Weighted MOE B C D E Total Concept I Concept II Concept III Concept IV Concept V Concept VI 1 3 4 2 4 1 1 3 1 2 4 1 5 2 5 3 4 1 4 5 5 5 4 3 2 4 5 1 4 3 13 17 20 13 20 9
