Question: Consider a vertical curve where a + 4 % grade intersects with a - 3 % grade at station ( 5 3 5 + 2

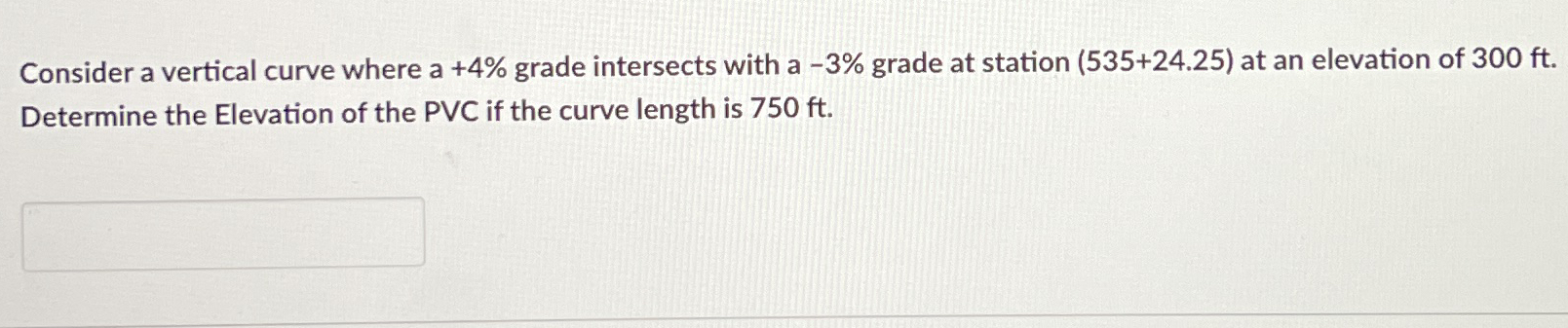

Consider a vertical curve where a +4% grade intersects with a -3% grade at station (535+24.25) at an elevation of 300 ft . Determine the Elevation of the PVC if the curve length is 750ft.
Consider a vertical curve where a + 4 % grade

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
