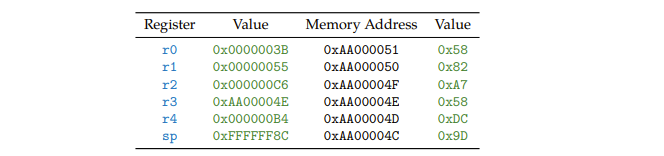

Consider an ARM Cortex-A system (not necessarily a DE1-SoC or DE10-Standard). Select registers and memory cells are initialized with the following values.

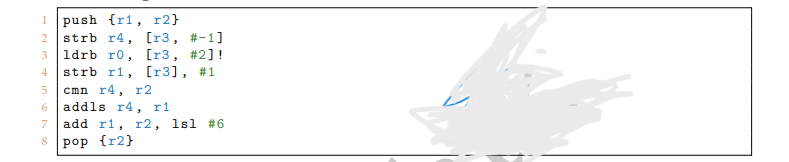

The following code is executed:

After the code has executed, what are the contents of the registers and memory cells? Please provide your answers as hexadecimal numbers (you may omit leading zeros if you wish).

A particular value is loaded into register r0. You are interested in the value of bit 5. Write the snippet of Assembly code that checks this bit and branches to label option_a: if that bit is set, and otherwise continues.

Write the Assembly code to store all multiples of 7 from 35 to 161, inclusive, to memory in ascending order starting from address 0x1700 as words. After this code completes, the address of the first value written should be contained in r0. This code does not need to be written as a subroutine. [
