Question: Consider ( Eigure 1 ) . Assume ( M c ) 1 = 4 5 0 l b * f t ( M c )

Consider (Eigure 1). Assume (Mc)1=450lb*ft(Mc)2=250lb*ft. and (Mc)3=330lb*ft

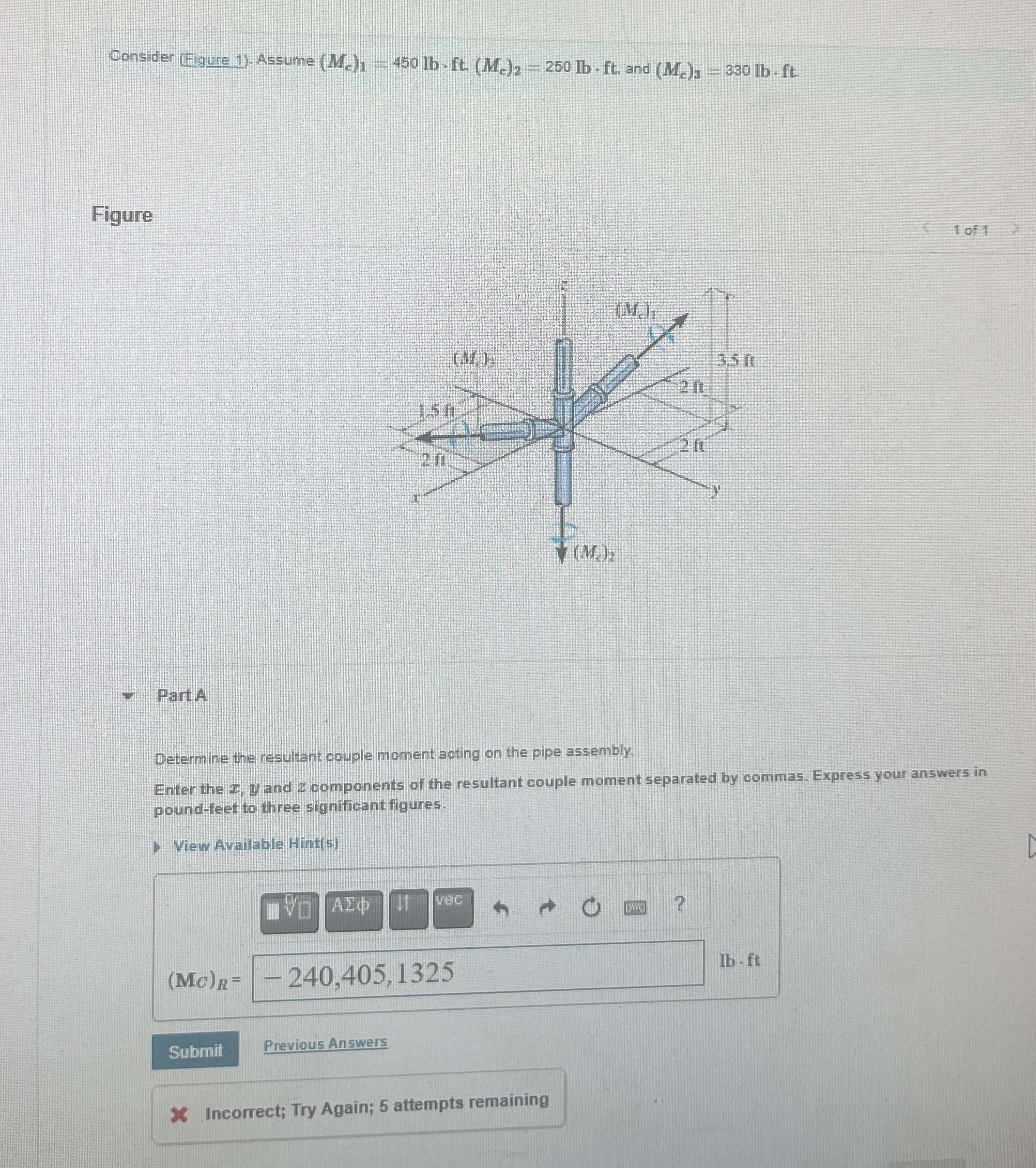

Figure
PartA
Determine the resultant couple moment acting on the pipe assembly.
Enter the x,y and z components of the resultant couple moment separated by commas. Express your answers in
pound-feet to three significant figures.
View Available Hint(s)
Incorrect; Try Again; 5 attempts remaining
Consider ( Eigure 1 ) . Assume ( M c ) 1 = 4 5 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
