Question: Consider ( Figure 1 ) . Assume ( M c ) 1 = 5 0 0 l b * f t , ( M c

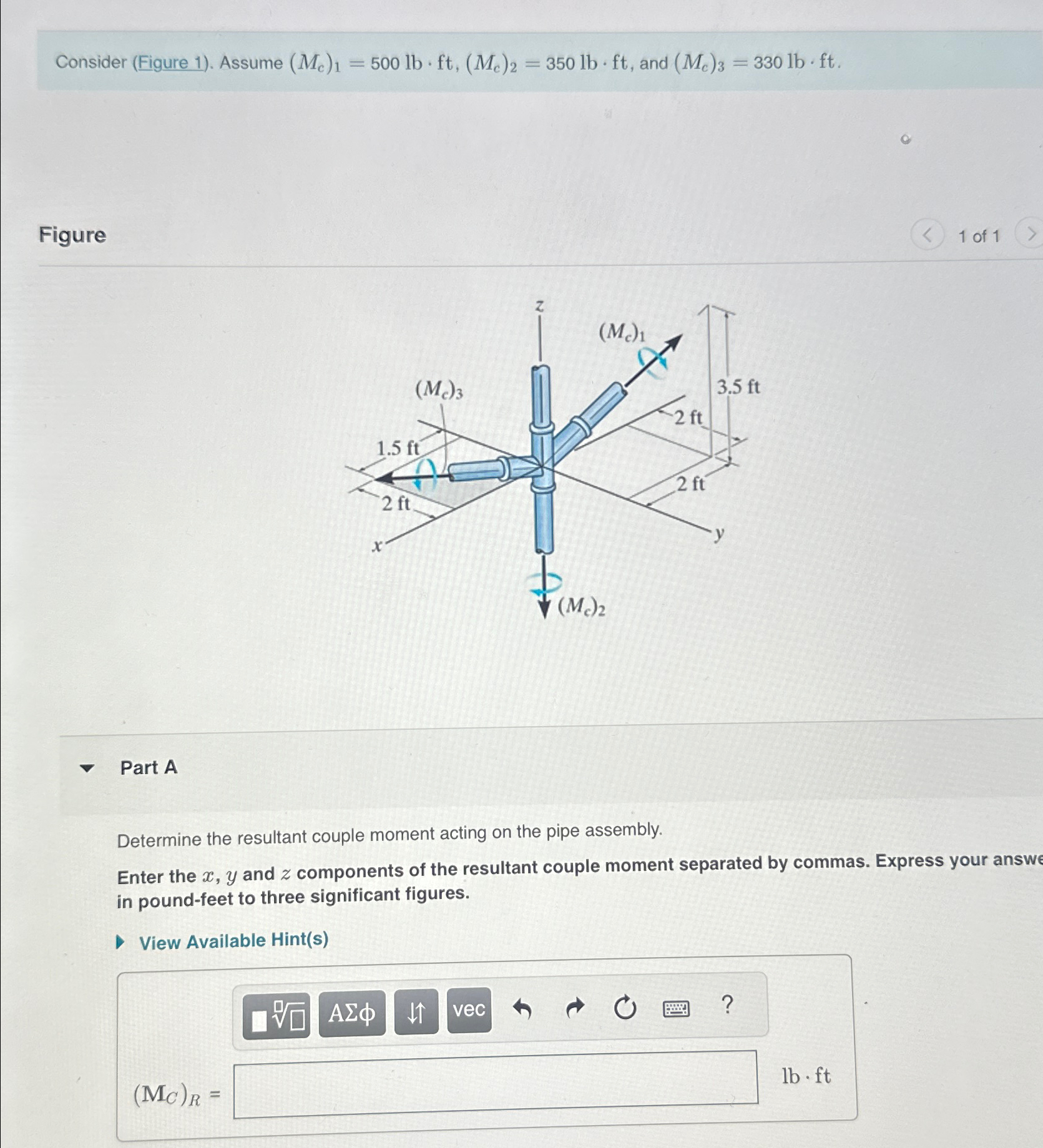

Consider (Figure 1). Assume (Mc)1=500lb*ft,(Mc)2=350lb*ft, and (Mc)3=330lb*ft.
Figure
1 of 1
Part A
Determine the resultant couple moment acting on the pipe assembly.
Enter the x,y and z components of the resultant couple moment separated by commas. Express your answe in pound-feet to three significant figures.
View Available Hint(s)
(MC)R=
lb*ft
Consider ( Figure 1 ) . Assume ( M c ) 1 = 5 0 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
