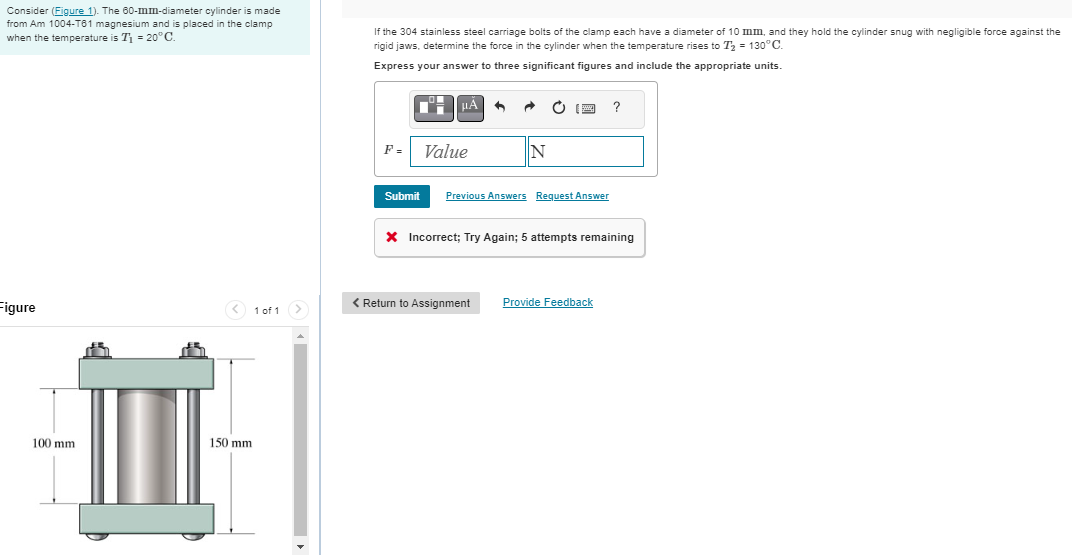

Question: Consider ( Figure 1 ) . The 6 0 - mm - diameter cylinder is made from Am 1 0 0 4 - T 6

Consider (Figure 1). The 60-mm-diameter cylinder is made
from Am 1004-T61 magnesium and is placed in the clamp
when the temperature is T1=20C.
If the 304 stainless steel carriage bolts of the clamp each have a diameter of 10 mm , and they hold the cylinder snug with negligible force against the
rigid jaws, determine the force in the cylinder when the temperature rises to T2=130C.
Express your answer to three significant figures and include the appropriate units.
Incorrect; Try Again; 5 attempts remaining
Figure
Provide Feedback
