Question: Consider ( Figure 1 ) . The weight W 1 = 1 2 0 0 l b . Neglect the weight of the bar A

Consider (Figure 1). The weight W1=1200lb. Neglect the weight of the bar AB. The cable goes over a pulley at C.
Part A
Determine the weight W2.
Express your answer to three significant figures and include the appropriate units.
Previous Answers
Request Answer
Incorrect; Try Again; 5 attempts remaining
Part B
Determine the x component of the reaction at the pin support A.
Express your answer to three significant figures and include the appropriate units.
Ax=
Request Answer
Part C

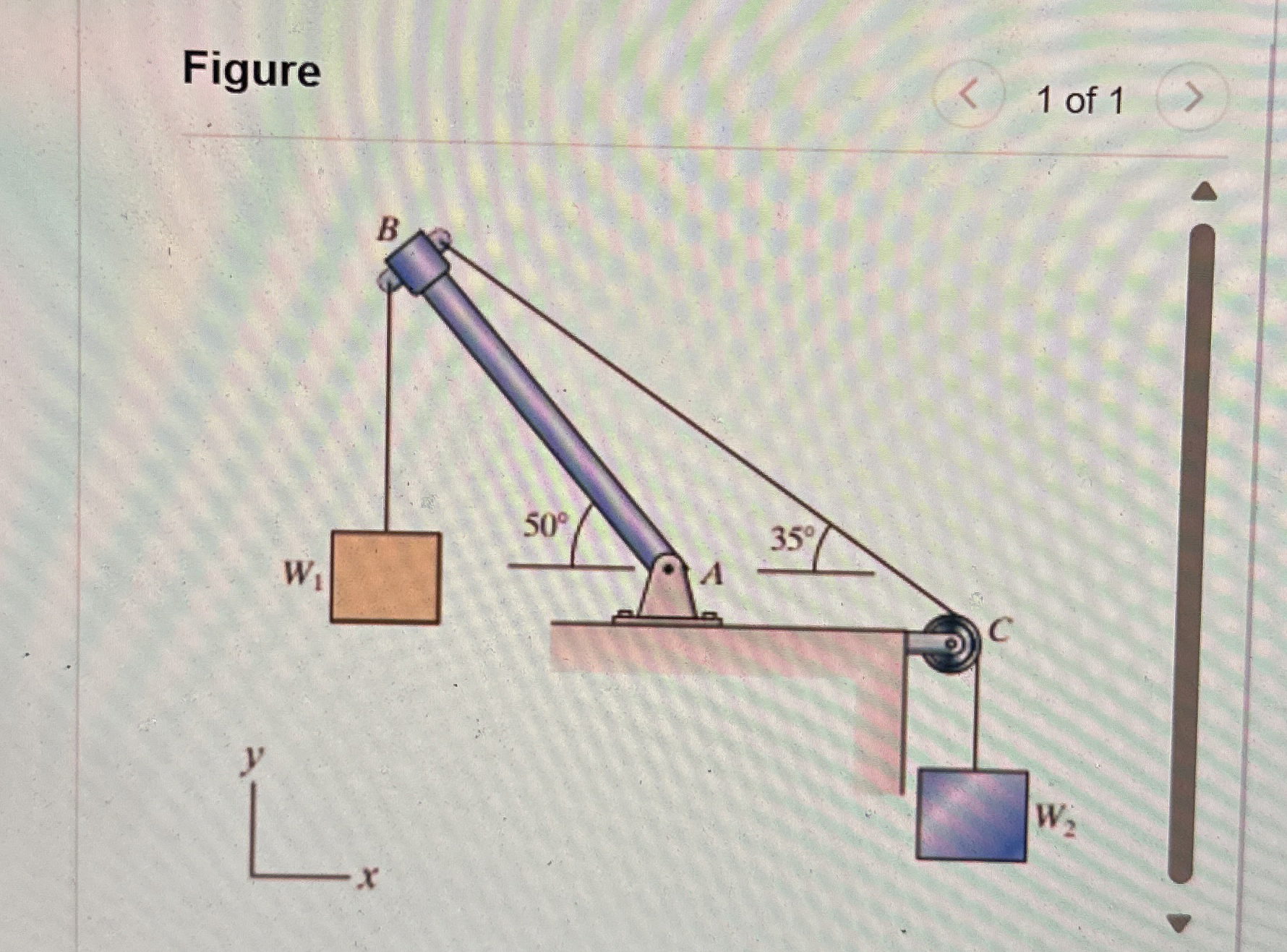

Figure
1 of 1
Consider ( Figure 1 ) . The weight W 1 = 1 2 0 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
