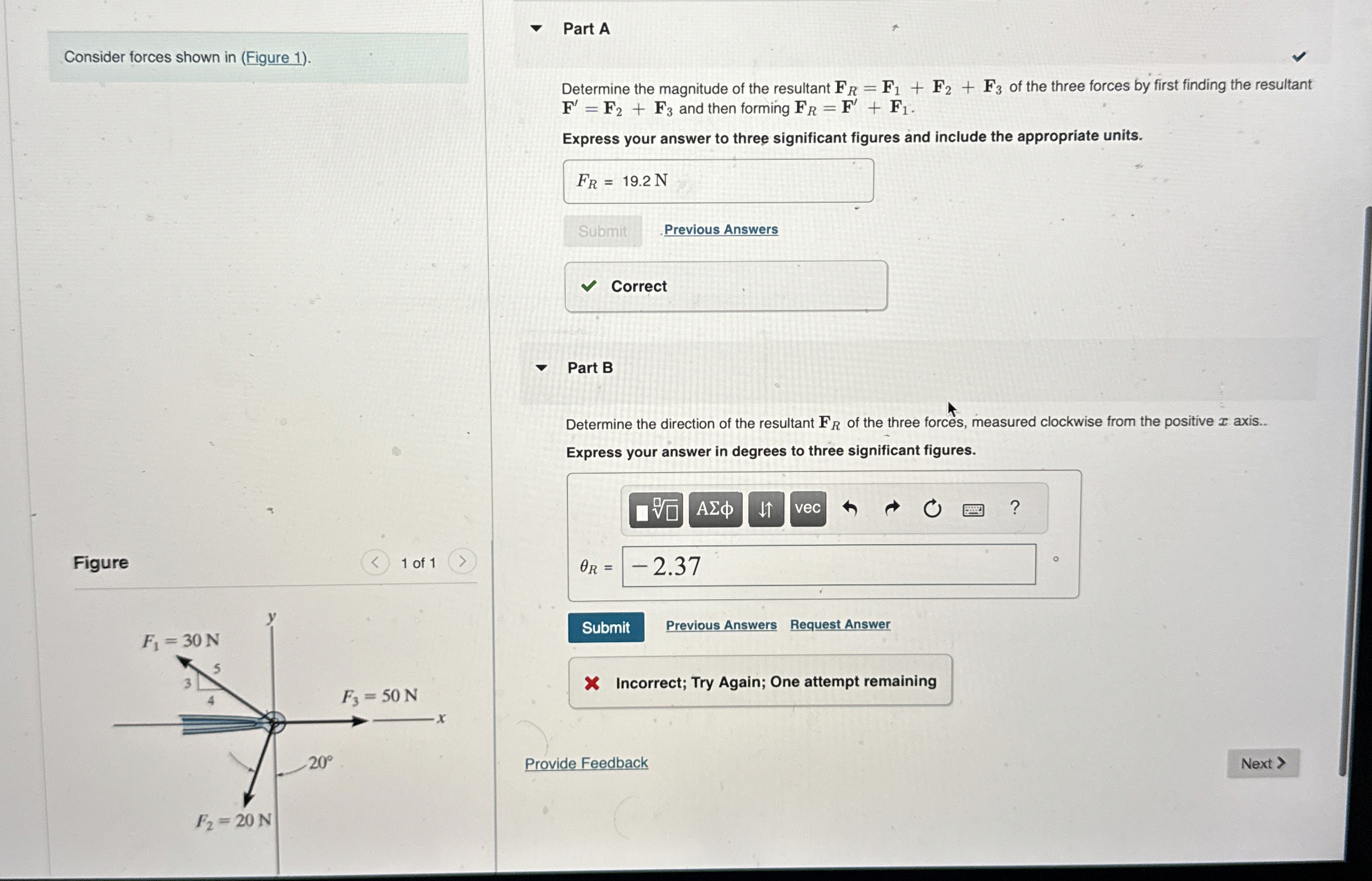

Question: Consider forces shown in ( Figure 1 ) . Figure 1 of 1 Part A Determine the magnitude of the resultant F R = F

Consider forces shown in (Figure 1).
Figure
1 of 1
Part A
Determine the magnitude of the resultant FR=F1+F2+F3 of the three forces by first finding the resultant
F'=F2+F3 and then forming FR=F'+F1.
Express your answer to three significant figures and include the appropriate units.
Previous Answers
Correct
Part B
Determine the direction of the resultant FR of the three forces, measured clockwise from the positive x axis..
Express your answer in degrees to three significant figures.
R=
Incorrect; Try Again; One attempt remaining
Consider forces shown in ( Figure 1 ) . Figure 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!
