Question: Consider: P = 4 k N , A = 2 m The given structure is supported by a pin at C and a cord at

Consider: P=4kN,A=2m

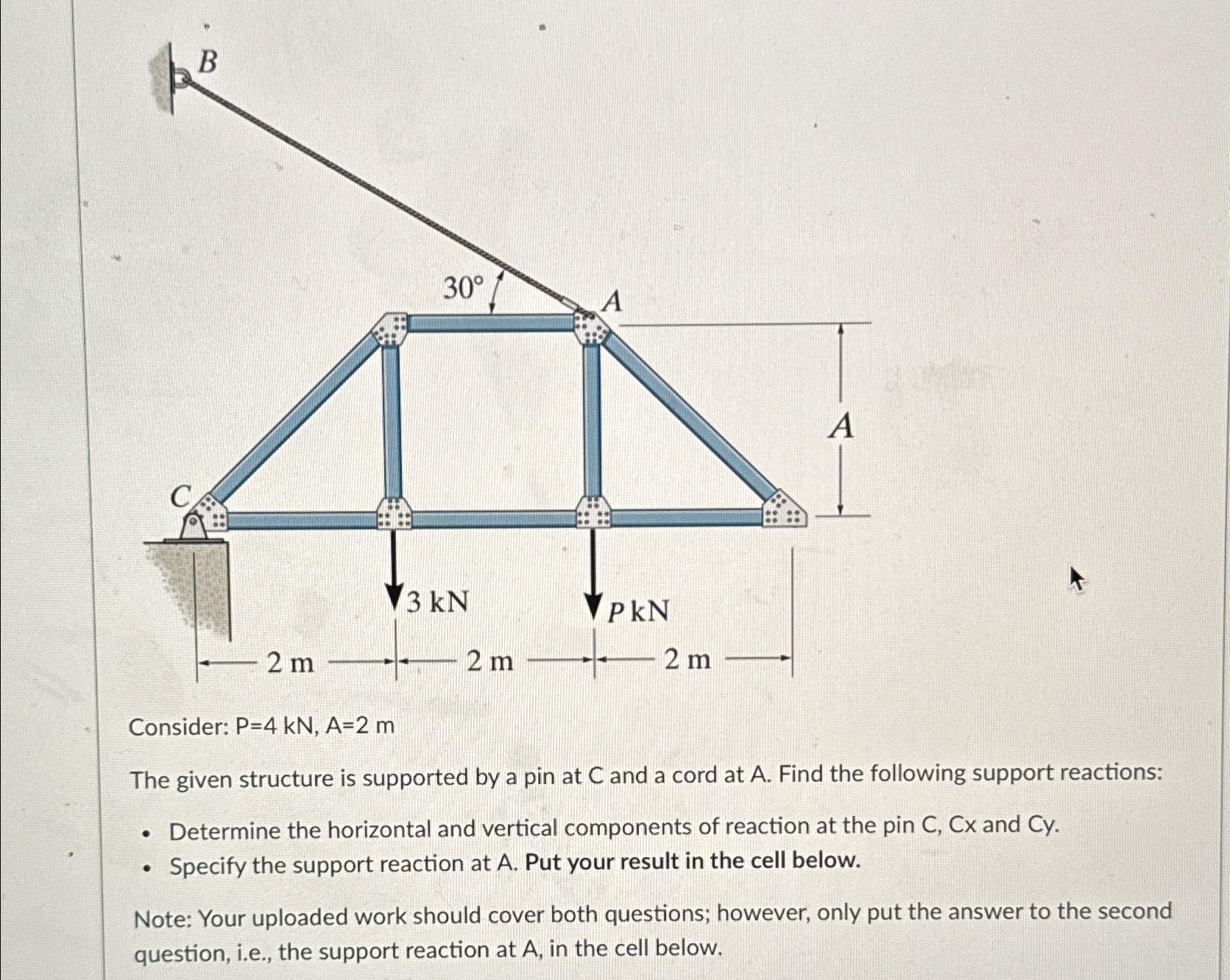

The given structure is supported by a pin at C and a cord at A. Find the following support reactions:
Determine the horizontal and vertical components of reaction at the pin C, Cx and Cy.
Specify the support reaction at A. Put your result in the cell below.
Note: Your uploaded work should cover both questions; however, only put the answer to the second question, i.e., the support reaction at A, in the cell below.
Consider: P = 4 k N , A = 2 m The given structure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
