Consider:

$P=8$kips,$w=7$kip$\frac{s}{f}t,l=9ft$

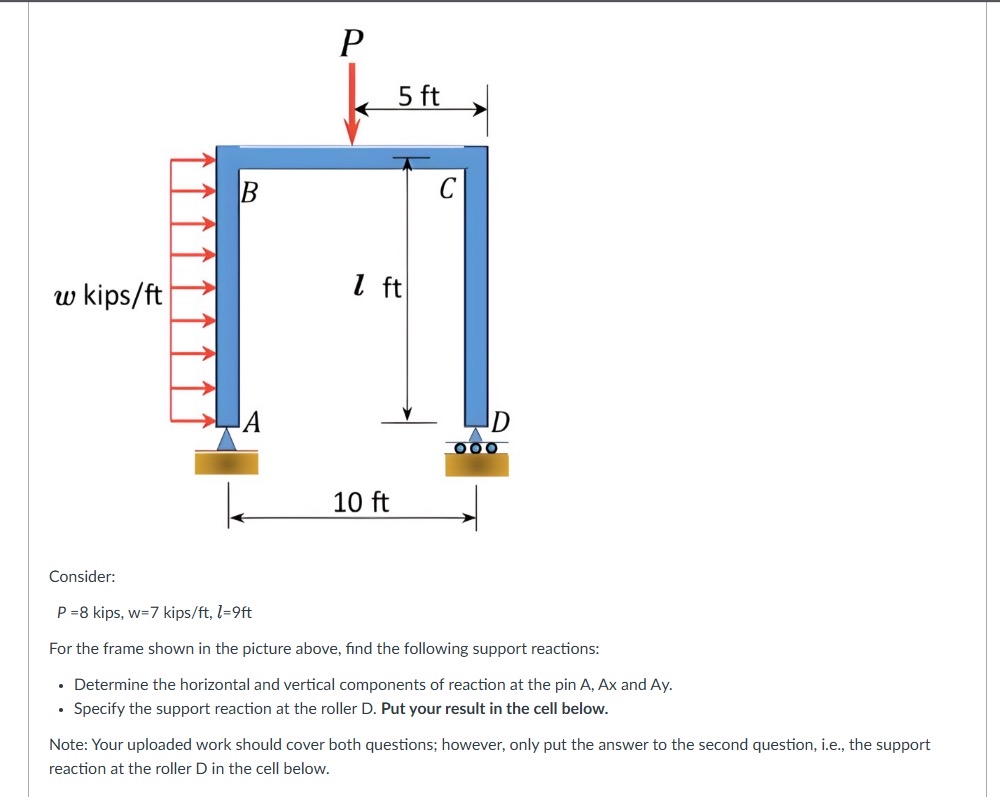

For the frame shown in the picture above, find the following support reactions:

Determine the horizontal and vertical components of reaction at the pin $A,Ax$ and Ay $.$

Specify the support reaction at the roller D$.$ Put your result in the cell below.

Note: Your uploaded work should cover both questions; however, only put the answer to the second question, i$.$e$.,$ the support reaction at the roller D in the cell below.
