Question: Consider the beam in ( Figure 1 ) . Take that ( M = 2 6 mathrm { kN } cdot

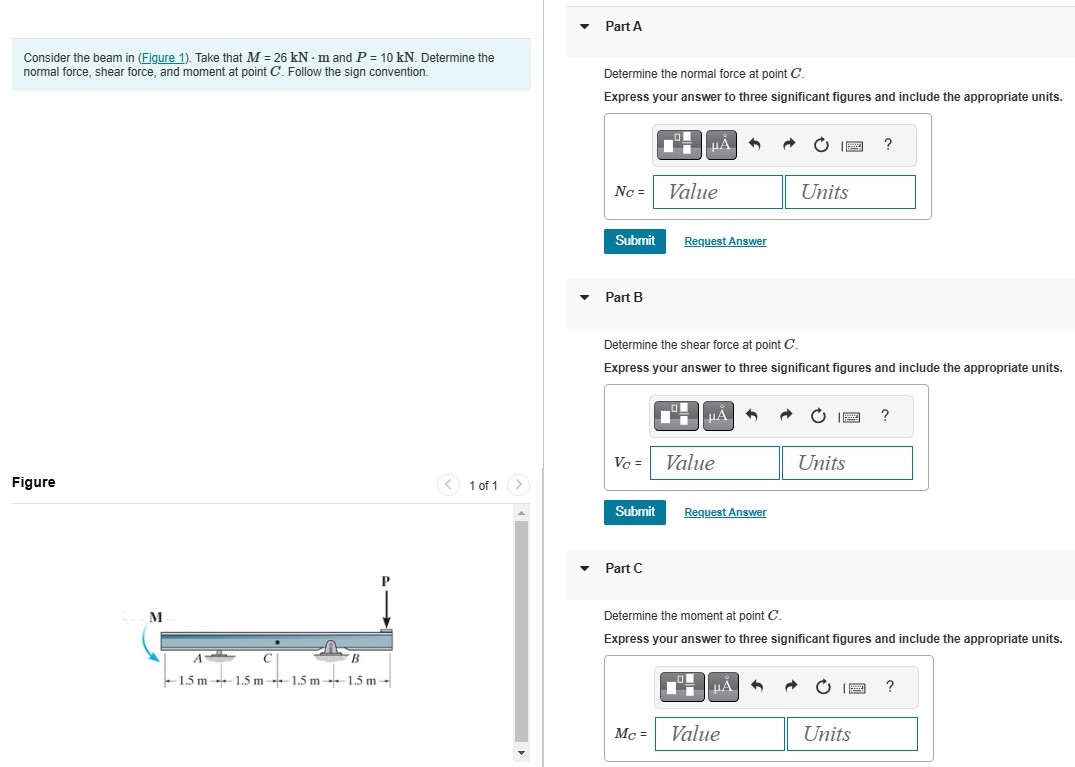

Consider the beam in (Figure 1). Take that \( M=26\mathrm{kN}\cdot \mathrm{m}\) and \( P=10\mathrm{kN}\). Determine the normal force, shear force, and moment at point \( C \). Follow the sign convention.
Figure
Part C
Determine the moment at point \( C \).
Express your answer to three significant figures and include the appropriate units.
Consider the beam in ( Figure 1 ) . Take that \ (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
