Question: Consider the beam shown in ( Figure 1 ) . Suppose w = 4 4 0 N / m and P = 3 0 0

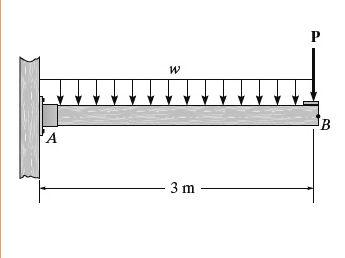

Consider the beam shown in (Figure 1). Supposew =440 N/m and P =300 N. Assume EI is constant. Find the slope (kilonewtons timed meter squared divided by EI) and displacement (kilonewtons timed meter cubed divided by EI) at point B (Use method of Virtual Work)
Consider the beam shown in ( Figure 1 ) . Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
