Question: Consider the beam shown in ( Figure 1 ) . Suppose that w = 1 4 k N m , P 1 = 2 1

Consider the beam shown in (Figure 1). Suppose that w=14kNm,P1=21kN, and P2=
35kN.
Determine the horizontal and vertical components of reaction at the pin A.
Express your answers in kilonewtons using three significant figures separated by a comma.
Ax,Ay=
Request Answer
Part B
Determine the horizontal and vertical components of reaction at the pin C.
Express your answers in kilonewtons using three significant figures separated by a comma.
Cx,Cy=
kN
Request Answer
Provide Feedback

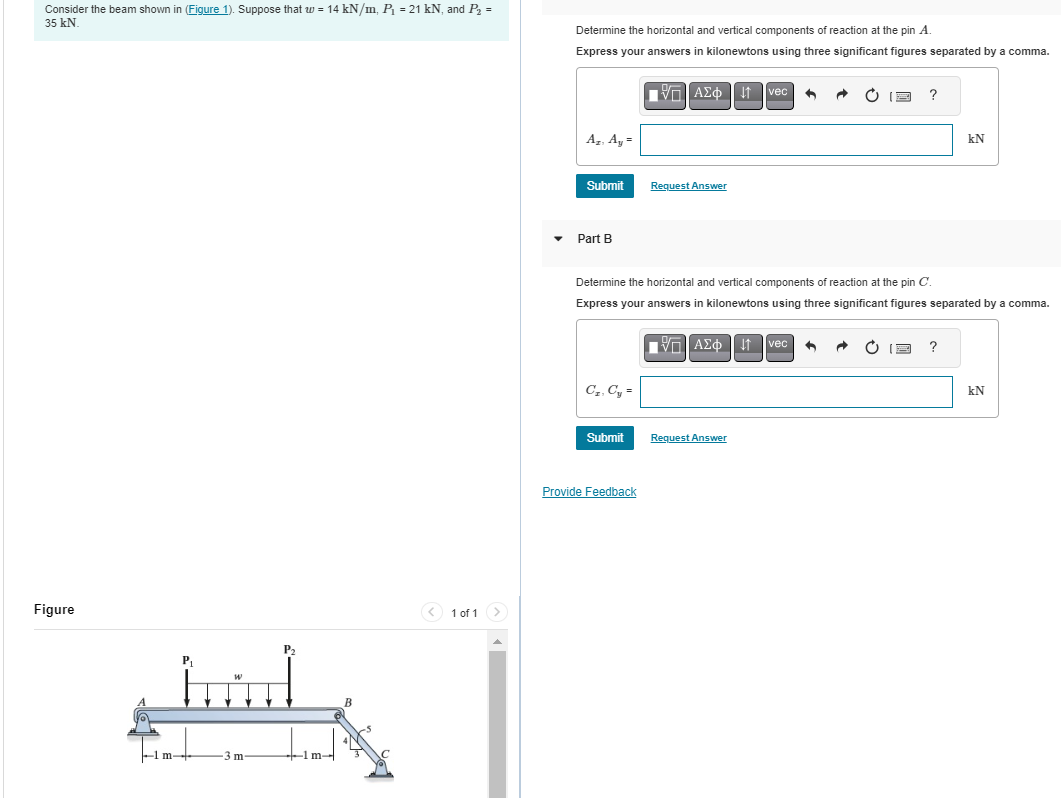

Figure
