Consider the beam shown in $($Figure $1).$ Suppose that w

$=30$ N$/$m

$.$

Figure$1$ of $1$

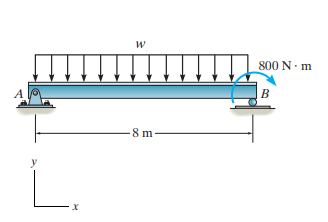

An $8$ meter long beam extends horizontally rightward from a pin supported end labeled as $\text{'}$A$\text{'}$ to a roller supported end labeled as B$.$ A uniformly distributed load w acts vertically downward on the beam between points $\text{'}$A$\text{'}$ and B$.$ A moment of $800$ newton meters is applied clockwise around end B$.$ The x y plane is shown. The x axis is directed to the right, and the y axis is directed upward.

Part A

Determine the horizontal and vertical components of reaction at support A

$.$

Express your answers in newtons to three significant figures separated by a comma.

Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

Ax

$,$ Ay

$=$

nothing

N

Request Answer

Part B

Determine the reaction at support B

$.$

Express your answer to three significant figures and include the appropriate units.

Activate to select the appropriates template from the following choices. Operate up and down arrow for selection and press enter to choose the input value typeActivate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

By

$=$

nothing
