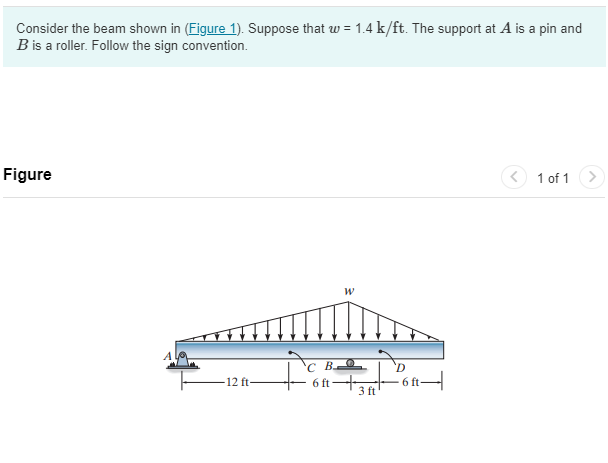

Question: Consider the beam shown in ( Figure 1 ) . Suppose that w = 1 . 4 k f t . The support at A

Consider the beam shown in (Figure 1). Suppose that w=1.4kft. The support at A is a pin and
B is a roller. Follow the sign convention.
Figure
Determine the internal normal force acting at point C.
Determine the internal shear force acting at point C.
Determine the internal bending moment acting at point C.
Determine the internal normal force acting at point D.
Determine the internal shear force acting at point D.
Determine the internal bending moment acting at point D.
Consider the beam shown in ( Figure 1 ) . Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
