Question: Consider the beam shown in ( Figure 1 ) . Suppose that w = 3 . Determine the internal loadings acting at point C in

Consider the beam shown in (Figure 1). Suppose that w=3. Determine the internal loadings acting at point C in the beam. Follow the Part A
Determine the internal normal force acting at point C in the beam.
Express your answer to three significant figures and include the appropriate units.
NC=
Request Answer
Part B
Determine the internal shear force acting at point C in the beam.
Express your answer to three significant figures and include the appropriate units.
VC=
Part C
Determine the internal bending moment acting at point C in the beam.
Express your answer to three significant figures and include the appropriate units.
sign convention.
Figure

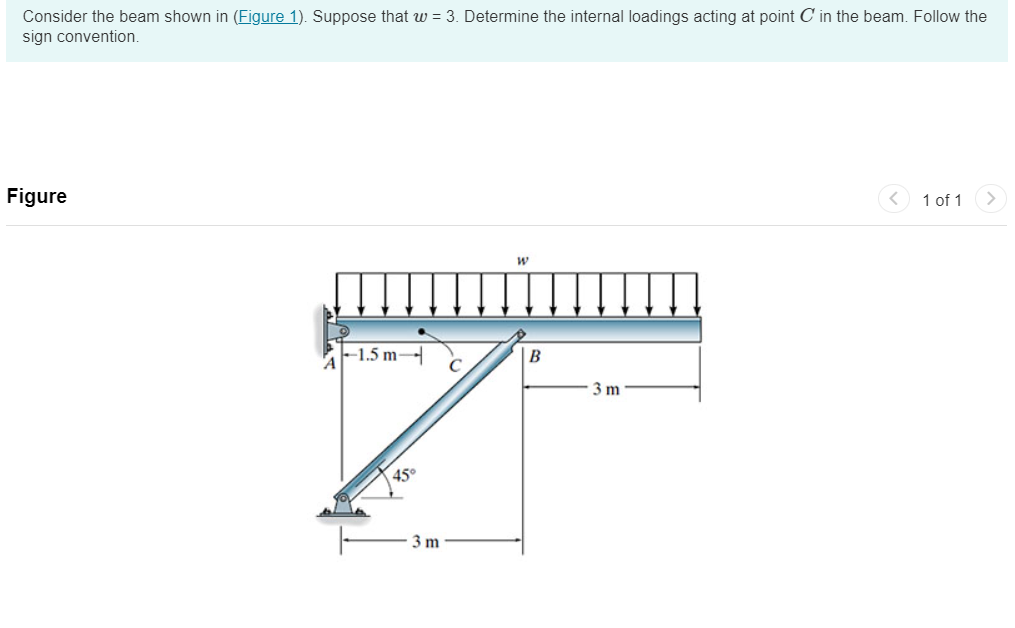

Consider the beam shown in ( Figure 1 ) . Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
