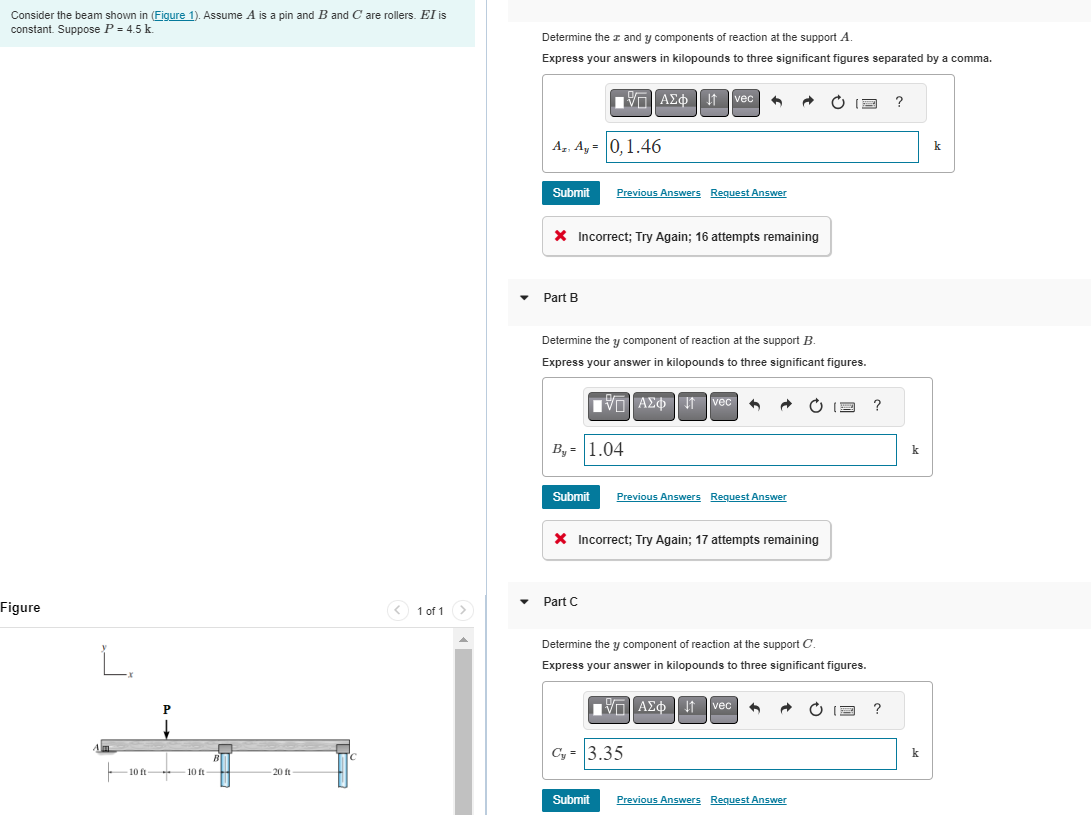

Question: Consider the beam shown in ( Figure 1 ) . Assume A is a pin and B and C are rollers. E I is constant.

Consider the beam shown in (Figure 1). Assume A is a pin and B and C are rollers. EI is
constant. Suppose P=4.5k.
Consider the beam shown in (Figure 1). Assume A is a pin and B and C are rollers. EI is
constant. Suppose P=4.5k.
Figure
Previous Answers
Incorrect; Try Again; 17 attempts remaining
Part C
Determine the y component of reaction at the support C.
Express your answer in kilopounds to three significant figures.
Cy=,k
