Question: Consider the beam shown in ( Figure 1 ) . Suppose that w = 8 5 0 N / m . Determine the y component

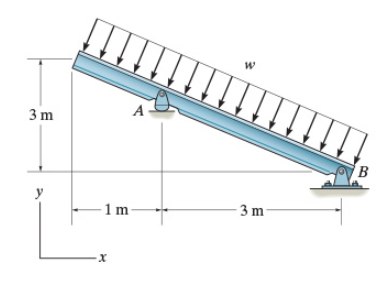

Consider the beam shown in (Figure 1). Suppose that w =850 N/m.
Determine the y component of reaction at A using scalar notation.
Ay=
Determine the x and y components of reaction at B using scalar notation.
Bx,By = kN
Consider the beam shown in ( Figure 1 ) . Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Part A - Finding the vertical component of the reaction at A Learning Goal: To determine the reaction forces at supports on a horizontal beam by using the equations of equilibrium for Determine the...

Q:

Consider the beam shown in (Figure 1). Suppose that w = 950 N/m and w = 600 N/m Part A Figure W W 3 m 3 m Determine the y component of reaction at A using scalar notation. Express your answer to...

Q:

show calculation Review Part A Consider the beam shown in (Figure 1). Suppose that w = 65 N/m. Determine the horizontal and vertical components of reaction at support A Express your answers in...

Q:

Consider the beam shown in (Figure 1). Suppose that w = 480 N/m. Determine the magnitude of reaction at A. Express your answer to three significant figures and include the appropriate units F = 900 N...

Q:

Consider the beam shown in (Figure 1). Suppose that w = 480 N/m. Part A Part B Determine the x and y components of reaction at B using scalar notation. Express your answers in newtons to three...

Q:

Part A Consider the beam shown in (Figure 1). Suppose that w1 = 950 N/m and w2 = 600 N/m Determine the y component of reaction at A using scalar notation. Express your answer to three significant...

Q:

Consider the beam shown in ( Figure 1 ) . Suppose that w 1 = 6 3 0 N m and w 2 = 4 2 0 N m . Figure 1 of 1 Part B Determine the x and y components of reaction at B . Express your answers in...

Q:

Consider the beam shown in ( Figure 1 ) . Suppose that w 1 = 9 0 0 N m and w 2 = 6 5 0 N m igure Part A Determine the y component of reaction at A using scalar notation. Part B Determine the x and y...

Q:

Consider the beam shown in (Figure 1). Suppose that F = 4.5 kN. Part A Determine the horizontal and vertical components of reaction at the pin A. Express your answers in kilonewtons to three...

Q:

Consider the beam shown in (Figure 1). Suppose that the distributed load intensities w = 80 lb/ft and W2 35 lb/ft. Follow the sign convention. = Figure 1 of 1 12 ft -15 f D 690 lb SA1 10 ft Determine...
