Question: Consider the beam shown in ( Figure 1 ) . The roller at ( A ) and the pin at ( B

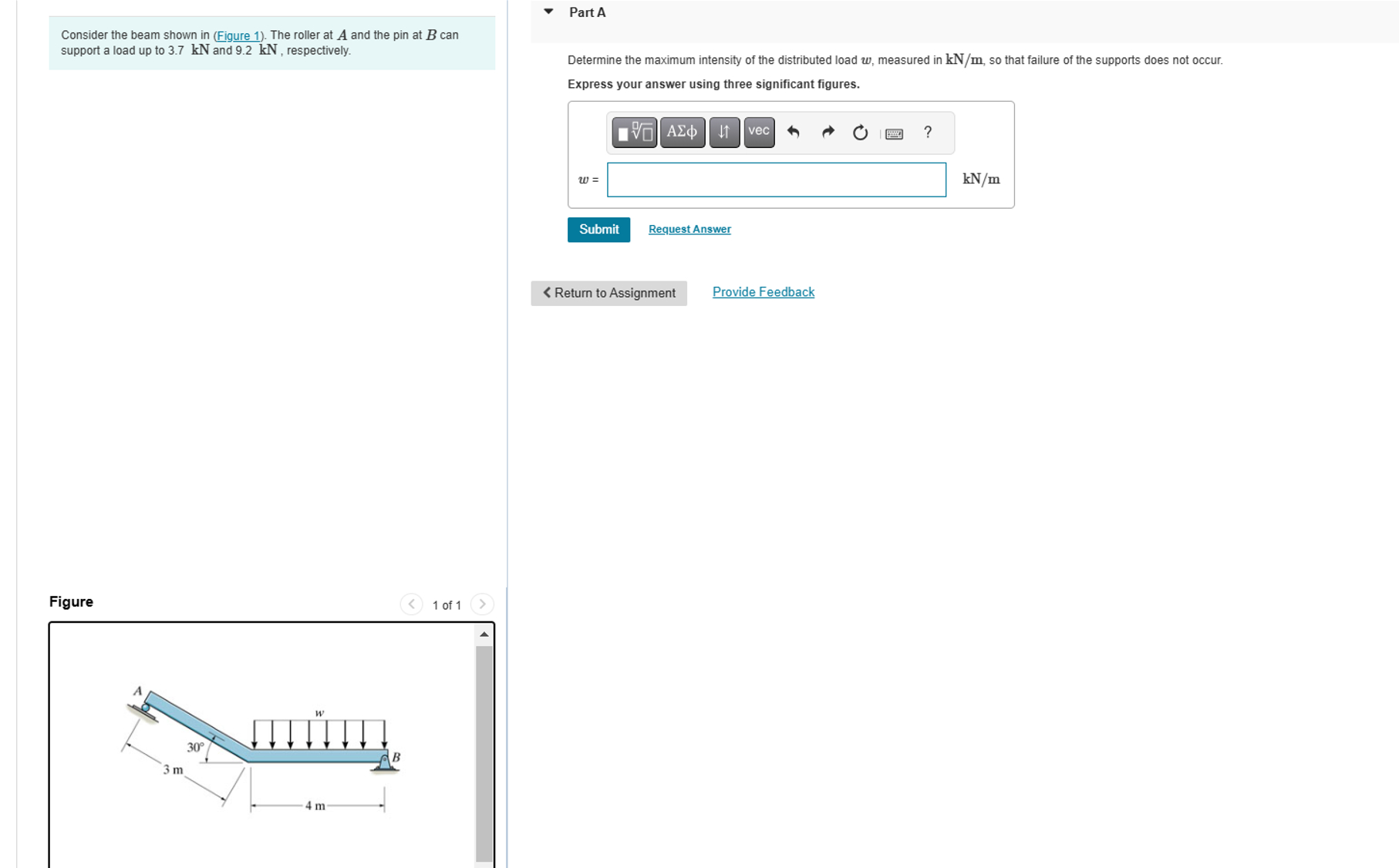

Consider the beam shown in (Figure 1). The roller at \( A \) and the pin at \( B \) can support a load up to 3.7 kN and 9.2 kN , respectively.
Part A
Determine the maximum intensity of the distributed load \( w \), measured in \(\mathrm{kN}/\mathrm{m}\), so that failure of the supports does not occur.
Express your answer using three significant figures.
