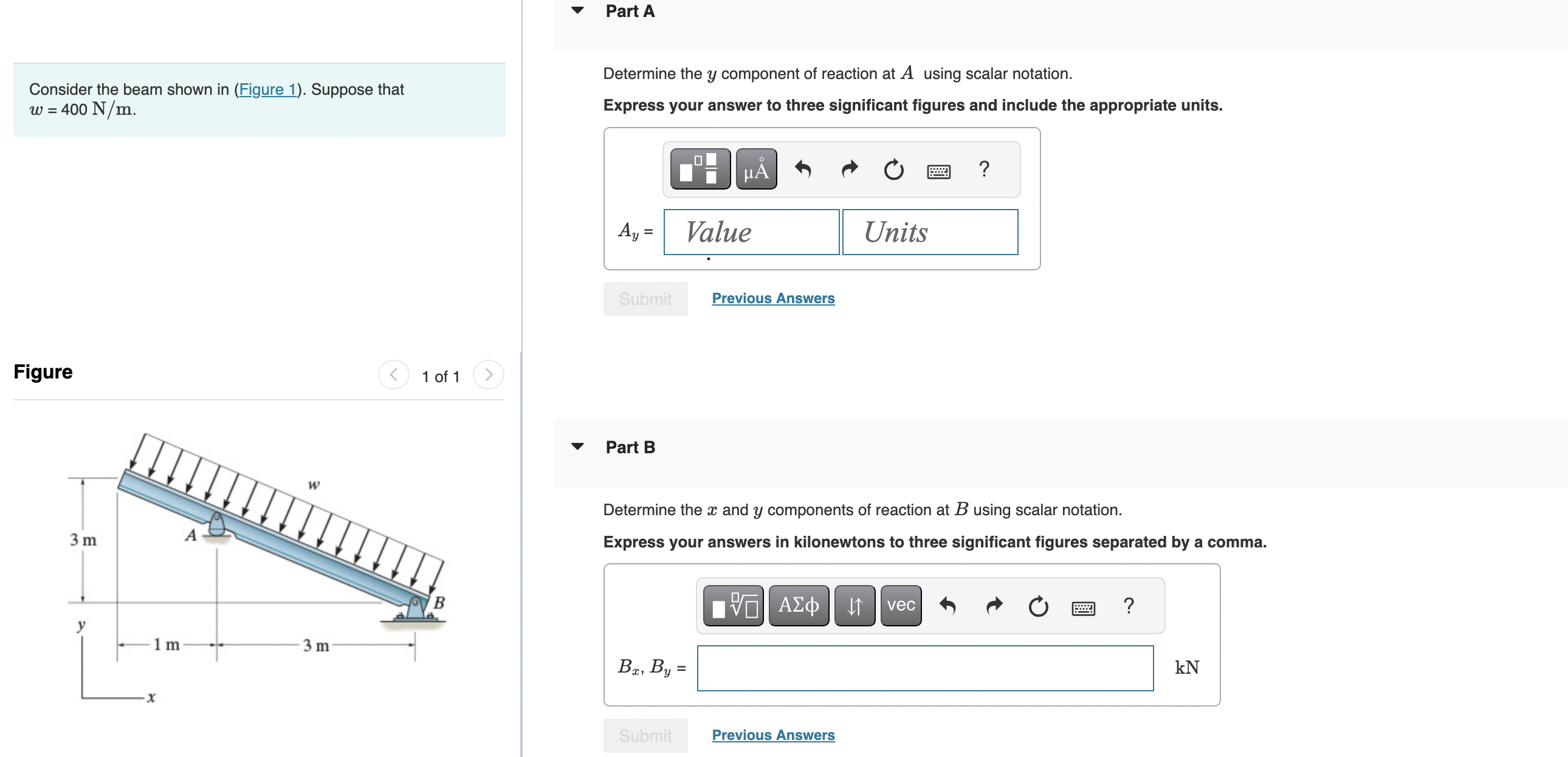

Question: Consider the beam shown in ( Figure 1 ) . Suppose that ww = 4 0 0 N / mN / m . Figure 1

Consider the beam shown in (Figure 1). Suppose that ww =400 N/mN/m.
Figure
1 of 1
Part A
Part complete
Determine the yy component of reaction at AA using scalar notation.
Express your answer to three significant figures and include the appropriate units.
Activate to select the appropriates template from the following choices. Operate up and down arrow for selection and press enter to choose the input value typeActivate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type
AyAy =
SubmitPreviousAnswers
Not completed before the time limit
Part B
Part complete
Determine the xx and yy components of reaction at BB using scalar notation.
Express your answers in kilonewtons to three significant figures separated by a comma.
Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type
BxBx, ByBy =
nothing
kNkN Part A
Consider the beam shown in (Figure 1). Suppose that \( w=400\mathrm{~N}/\mathrm{m}\).
Determine the \( y \) component of reaction at \( A \) using scalar notation.
Express your answer to three significant figures and include the appropriate units.
\[
A_{y}=
\]
Part B
Determine the \( x \) and \( y \) components of reaction at \( B \) using scalar notation.
Express your answers in kilonewtons to three significant figures separated by a comma.
Figure
Consider the beam shown in ( Figure 1 ) . Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
