Question: Consider the computer system, with multiplexors for a common bus, depicted below. Select the option that best matches the information provided in the diagram. Register

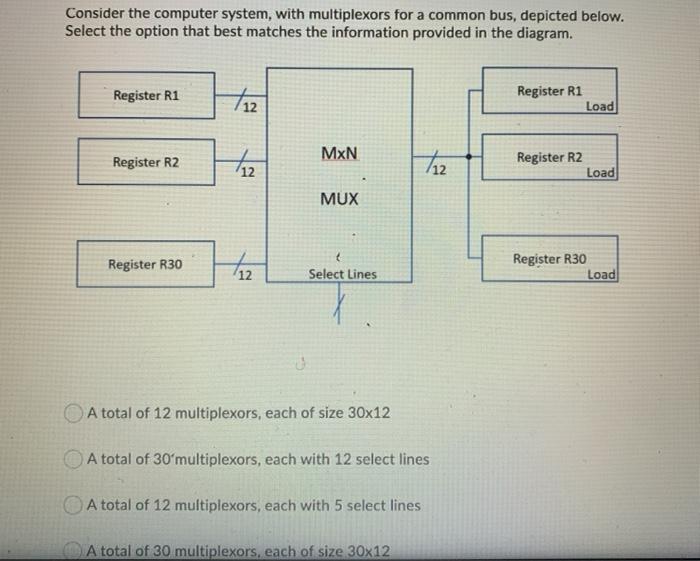

Consider the computer system, with multiplexors for a common bus, depicted below. Select the option that best matches the information provided in the diagram. Register R1 Register R1 Load 12 MxN Register R2 12 112 Register R2 Load 12 MUX Register R30 112 12 Select Lines Register R30 Load A total of 12 multiplexors, each of size 30x12 A total of 30multiplexors, each with 12 select lines A total of 12 multiplexors, each with 5 select lines A total of 30 multiplexors, each of size 30x12
