Question: Consider the constant thickness ( 1 m m ) 8 0 m m 4 0 m m offset - I section shown in figure below,

Consider the constant thickness

(1 m m) 80 m m 40 m m

offset

-

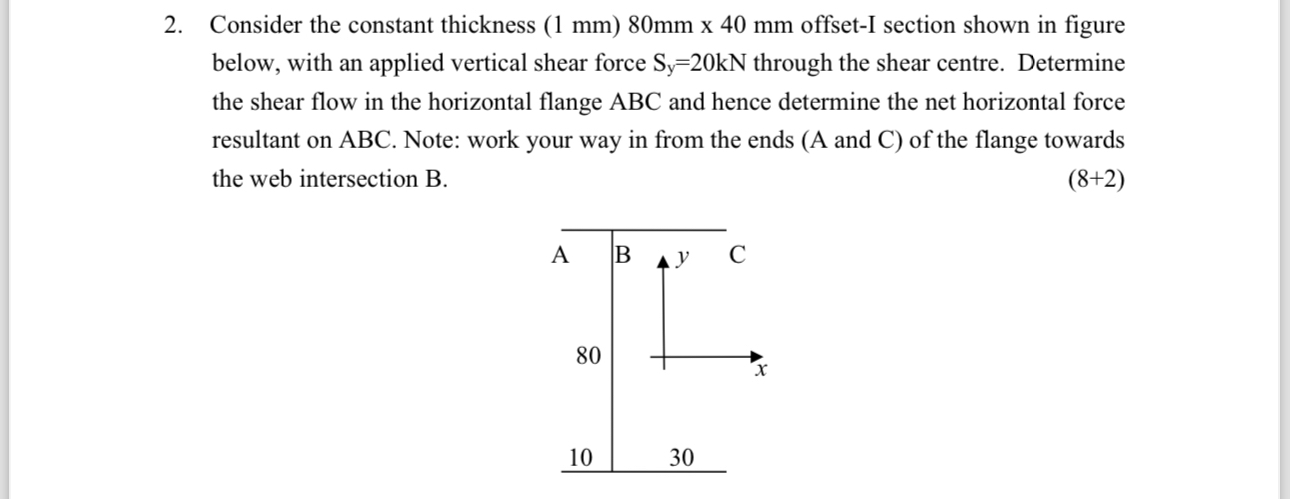

I section shown in figure below, with an applied vertical shear force

S_{y} = 20 k N

through the shear centre. Determine the shear flow in the horizontal flange ABC and hence determine the net horizontal force resultant on ABC. Note: work your way in from the ends

(

A and

C)

of the flange towards the web intersection

B .

(8 + 2)

Consider the constant thickness ( 1 m m ) 8 0 m m

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
