Question: Consider the flowsheets shown in Figure Q2A and Q2B, Identify all irreducible groups (partitions) and write down a valid precedence order (calculation sequence) of the

Consider the flowsheets shown in Figure Q2A and Q2B, Identify all irreducible groups (partitions) and write down a valid precedence order (calculation sequence) of the flowsheet comprising these irreducible groups.

Consider the flowsheets shown in Figure Q2A and

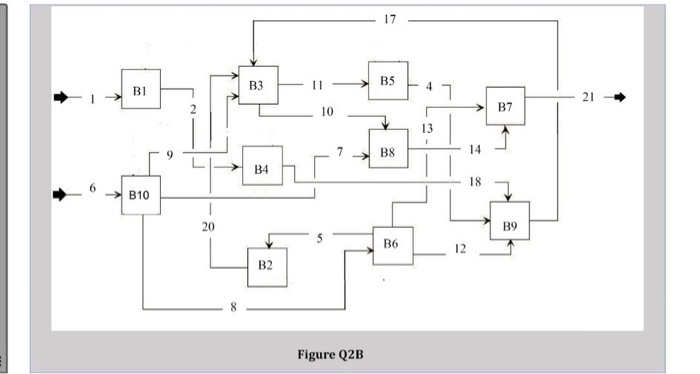

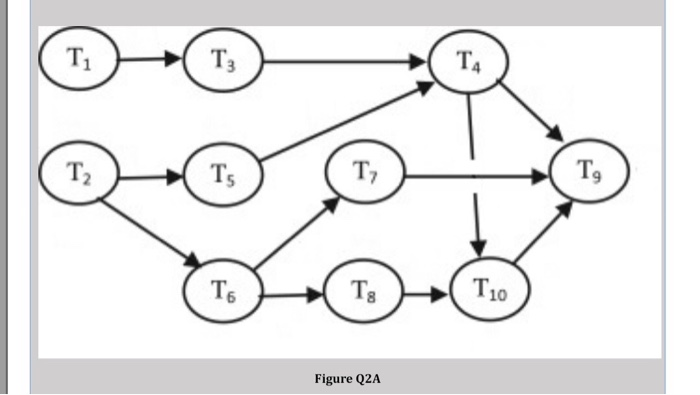

Ti T3 TA T2 TS T, T, . Tg T10 Figure Q2A 17 B3 11 B5 4 B1 21 10 B7 13 9 B8 B4 18 B10 - 20 B9 5 B6 12 B2 8 Figure Q2B
