Question: Consider the following data path ( slightly modified from that given in the book ) On this data path, it is possible to increment PC

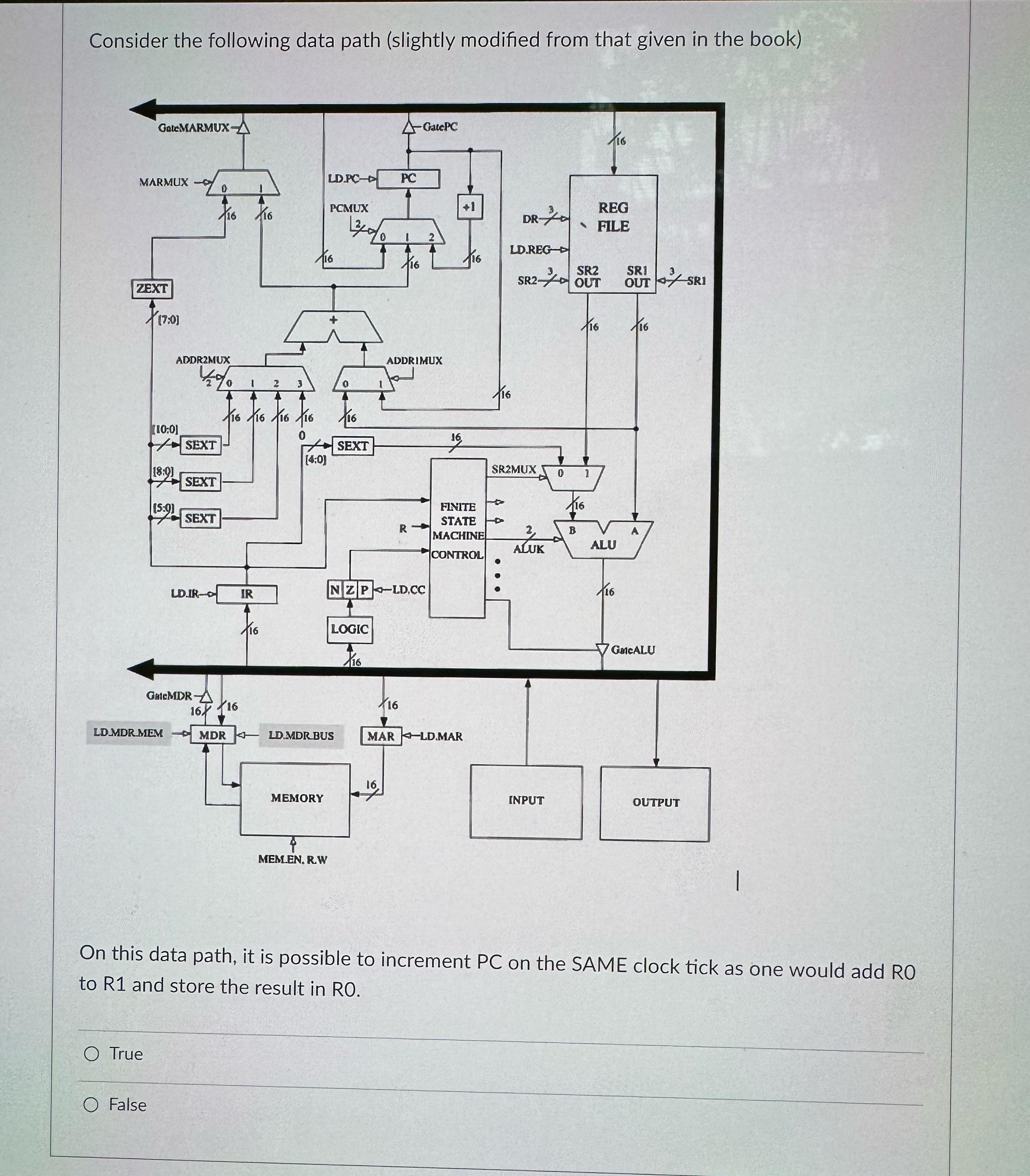

Consider the following data path (slightly modified from that given in the book) On this data path, it is possible to increment PC on the SAME clock tick as one would add RO to R1 and store the result in RO. True False
Consider the following data path ( slightly

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
