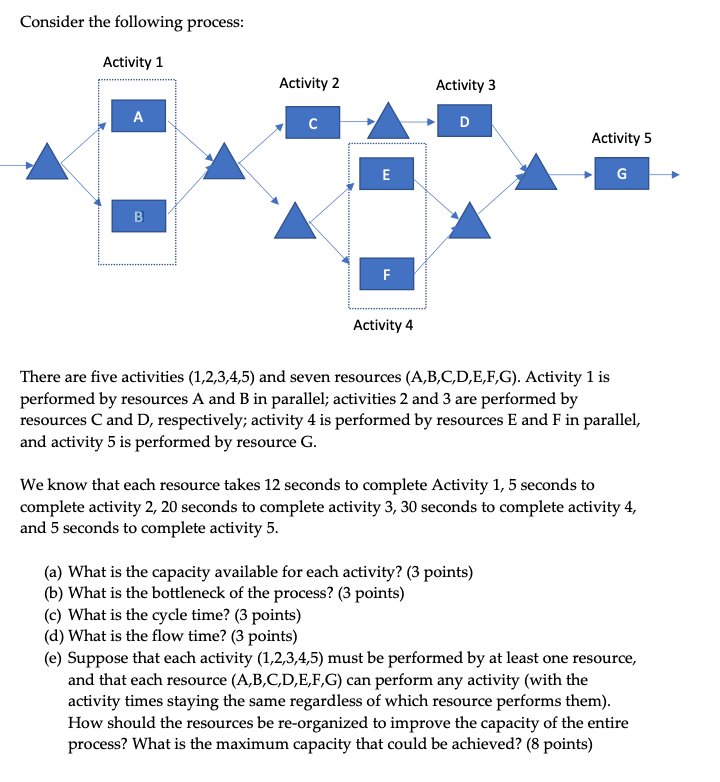

Consider the following process: Activity 1 Activity 2 Activity 3 A D Activity 5 E B F Activity 4 There are five activities (1,2,3,4,5) and seven resources (A,B,C,D,E,F,G). Activity 1 is performed by resources A and B in parallel; activities 2 and 3 are performed by resources C and D, respectively; activity 4 is performed by resources E and F in parallel, and activity 5 is performed by resource G. We know that each resource takes 12 seconds to complete Activity 1, 5 seconds to complete activity 2, 20 seconds to complete activity 3, 30 seconds to complete activity 4, and 5 seconds to complete activity 5. (a) What is the capacity available for each activity? (3 points) (b) What is the bottleneck of the process? (3 points) (c) What is the cycle time? (3 points) (d) What is the flow time? (3 points) (e) Suppose that each activity (1,2,3,4,5) must be performed by at least one resource, and that each resource (A,B,C,D,E,F,G) can perform any activity (with the activity times staying the same regardless of which resource performs them). How should the resources be re-organized to improve the capacity of the entire process? What is the maximum capacity that could be achieved? (8 points)
