Question: Consider the frame shown in ( Figure 1 ) . Suppose that w = 6 k N m . Figure 1 of 1 B x

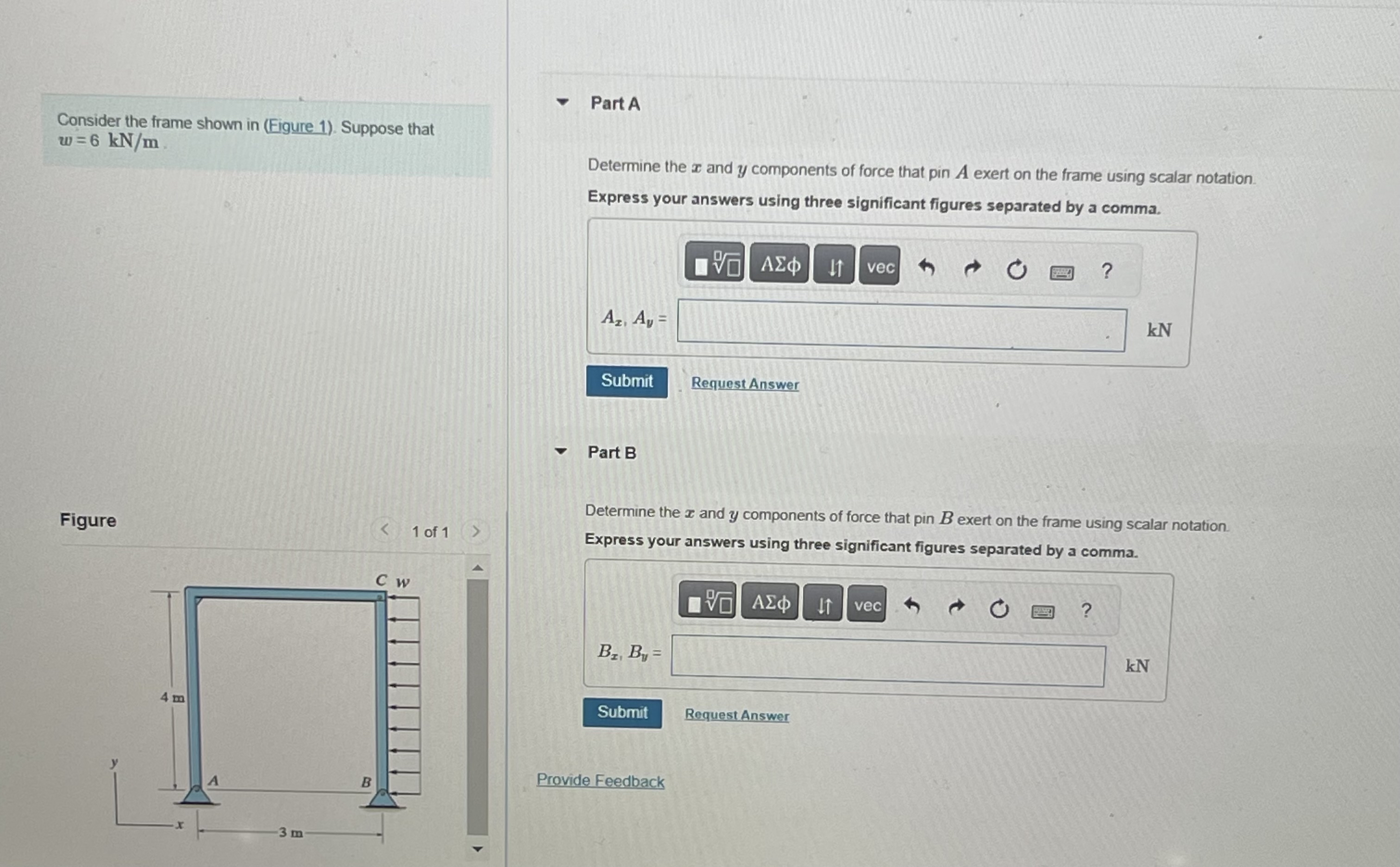

Consider the frame shown in (Figure 1). Suppose that w=6kNm.
Figure
1 of 1
Bx,By=
Part B
Request Answer
Determine the x and y components of force that pin B exert on the frame using scalar notation.
Express your answers using three significant figures separated by a comma.
RequestAnswer
Provide Feedback
Consider the frame shown in ( Figure 1 ) .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
